Wago

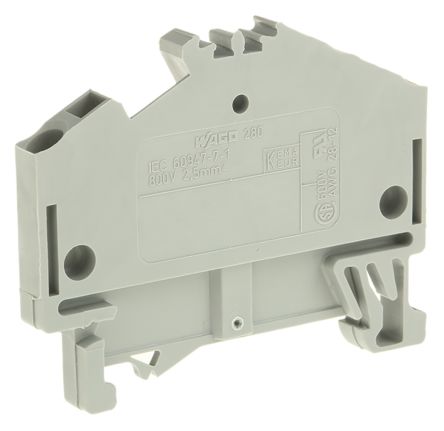

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 额定电流 | 100A |
| 系列 | 280 |
| 额定电压 | 600 V |
| 线径规格 | 14 → 12 AWG |
| 连接器类型 | :Terminal Block, DIN Rail |
| Connector Mounting | :DIN Rail |
| 节距 | :5mm |
| No. of Contacts | :3 |
| Wire Size AWG Min | :28AWG |
| Wire Size AWG Max | :12AWG |
| 触点电镀 | :- |
| 触点材料 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| 颜色 | :Grey |
| 外宽 | :5mm |
| 终端类型 | :Cage Clamp |
| Voltage Rating V AC | :800V |
| Wire Area Size Max | :2.5mm² |
| Wire Area Size Min | :0.08mm² |
| Weight (kg) | 0.006 |
| Tariff No. | 85369010 |
| Electrical mounting | spring clamp |
| Number of ways | 1 |
| 额定电流 | 24A |
| Multiplicity | 1 |
| Number of terminals | 3 |
| Gross weight | 7.32 g |
| Wire cross section | 0.08...2.5mm2 |
| Splice terminal type | rail |
| 额定电压 | 800V |
| Body dimensions | 5 x 36.5 x 50.5mm |
| Connector series | 280 |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
