Wago

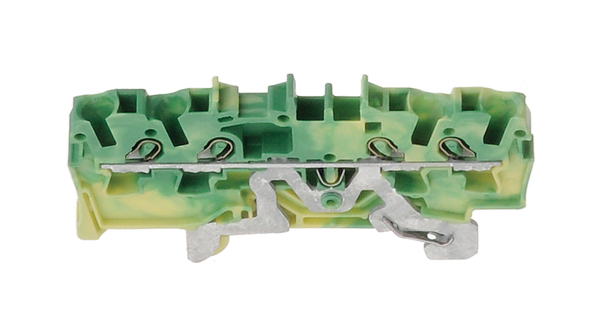

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 颜色 | Green/Yellow |
| 额定电流 | 22A |
| 楼层数 | Single |
| 间距 | 5.2mm |
| 系列 | 2002 |
| 端接方式 | Cage Clamp |
| 额定电压 | 800 V |
| 线径规格 | 22 → 12 AWG |
| 连接器类型 | :Terminal Block, DIN Rail |
| Connector Mounting | :DIN Rail |
| 节距 | :5.2mm |
| No. of Contacts | :4 |
| Wire Size AWG Min | :22AWG |
| Wire Size AWG Max | :12AWG |
| 触点电镀 | :- |
| 触点材料 | :Steel |
| SVHC | :No SVHC (20-Jun-2013) |
| Approvals / Standards | :EN 60079, EN 60241 |
| 外宽 | :5.2mm |
| MSL | :- |
| No. of Poles | :1 |
| 终端类型 | :Cage Clamp |
| Voltage Rating V AC | :800V |
| Wire Area Size Max | :2.5mm² |
| Wire Area Size Min | :0.25mm² |
| Wire Size (AWG) | :22AWG to 12AWG |
| Wire Size Range (AWG) | :22-12 |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
