Omron Electronic Components

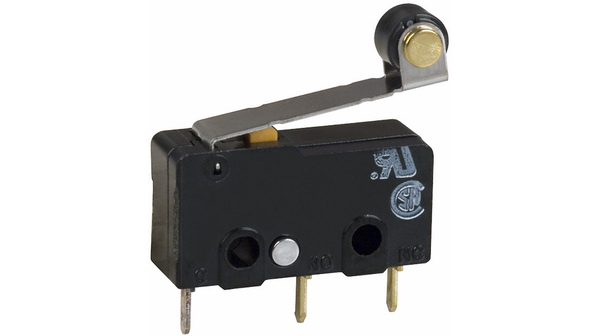

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | SS-10GL2D |
| 子类别 | Switch Snap Action |
| 交货期 | 42 Days |
| 执行器类型 | Roller Lever |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 10.1 A @ 14 V dc, 10.1 A @ 250 V ac |
| 触点材料 | Silver Alloy |
| IP等级 | IP40 |
| 最高工作温度 | +85°C |
| 机械寿命 | 10000000Operations |
| 最低工作温度 | -25°C |
| 操作力 | 0.49 N |
| 释放力 | 0.06N |
| 终端类型 | PCB |
| RoHS指令 | Compliant |
| AC contacts rating (at resistance load) | 10 A / 250 VAC |
| Leads | for PCB, straight |
| Contacts configuration | SPDT |
| Switches features | with lever (with roller) |
| Switching torque | 1.47N |
| Mechanical durability | 10000000cycles |
| Multiplicity | 1 |
| Electrical life | 50000cycles |
| Gross weight | 1 g |
| Stable positions number | 1-position |
| Operating temperature | -25...85°C |
| Min insulation resistance | 100MΩ |
| Body dimensions | 19.8 x 6.4 x 10.2mm |
| Terminal pitch | 7.3mm |
| 密封 | IP40 |
| Switching method | ON-(ON) |
| Lever length | 14.5mm |
| Max contact resistance: | 30mΩ |
| Switch type | microswitch |
| SubCategory | Snap-Action Switch |
| MainCategory | Switches |
| 联系方式 | 1 change-over (CO) |
| 额定电流 | 10 A |
| Actuation | Roller lever |
| Actuation force | 0.49 N |
| Termination type | PCB |
| 额定电压 | 250 |
| Temperature range | -25...+85 °C |
| Protection rating | IP 40 |
| Contact material | Ag alloyed |
| 最低工作温度 | -25°C |
| IP 防护等级 | IP40 |
| 最高工作温度 | +85°C |
| 操作力 | 0.49 N |
| 执行器类型 | 滚轮杠杆 |
| 触点配置 | 单刀双掷 - 常开/常闭 |
| 工作温度范围 | -25 → +85°C |
| CAD 绘图 | 3D CAD 模型 |
| 触点材料 | 银合金 |
| 机械寿命 | 10000000Operations |
| 释放力 | 0.06N |
| 触点额定电流 | 10.1 A @ 250 V 交流 |
| 接端类型 | PCB |
