Omron Industrial

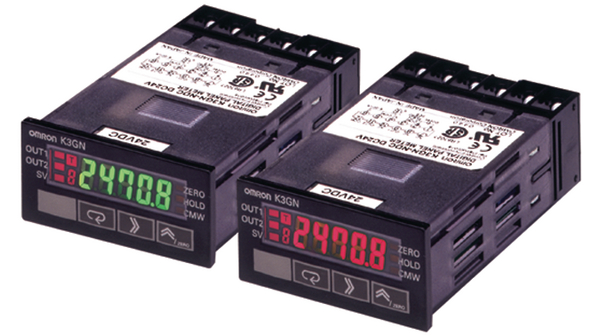

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 显示器类型 | LCD |
| 测量范围 | ±10VDC, 0 ~ 20mADC |
| 安装类型 | Panel Mount, Screw In |
| 显示字符 - 高度 | 0.275" (7.00mm) |
| 显示方式 | Green, Red Characters, Black Background |
| 类型 | Current (Ammeter), Voltage (Voltmeter) |
| 显示位数 | 5 |
| 工作温度 | -10°C ~ 55°C |
| 电压 - 电源 | 24VDC |
| 面板开孔尺寸 | Rectangular - 45.00mm x 22.20mm |
| 标准包装 | 1 |
| 端子 | Screw Terminals |
| 准确性 | ±0.1% + 1 digit |
| 显示器正面尺寸 | 1.89" W x 1.38" H (48.0mm x 35.1mm) |
| 产品特点 | NEMA 4X/IP66 Sealing Gasket |
| 工作电源电压 | 24 VDC |
| 工作电源电流 | 50 mA |
| 产品种类 | Digital Panel Meters |
| 外形尺寸 | 83 mm L x 48 mm W x 24 mm H |
| 描述/功能 | Multi-input compatible, DC voltage/current, rotary pulse |
| 系列 | K3GN |
| 设备类型 | Multi-Function DC Voltmeters/Ammeters |
| 安装风格 | Panel |
| 表壳长度 | 83 mm |
| RoHS | RoHS Compliant |
| 表壳厚度 | 24 mm |
| 工厂包装数量 | 1 |
| 表壳宽度 | 48 mm |
| 输入电压 | - 10 VDC to 10 VDC |
| 输入电流 | 4 mA to 20 mA |
| 每个字符的行数 | 5 |
| 防护等级 | IP66 (Face), IP20 (Rear), IP00 (Terminal) |
| 端接类型 | Screw Terminal |
| 输出类型 | Solid State (3) |
| 重量 | 0.221 lb (100.24g) |
| RoHS指令 | Lead free / RoHS Compliant |
| Measurement frequency range | 0...5 kHz |
| Display, height of digits | 7 |
| Dimensions W x H x D | 48 x 24 x 83 mm |
| Operating temperature | -10...+55 °C |
| Counting range | -19999...99999 |
| Output, logic unit | 50 mA@ 24 VDC |
| 连接方式 | Screw Terminal |
| Display, digits | 5 digits |
| Front panel cutout, W x H | 45 x 22.2 mm |
| Operating voltage | 24 VDC |
| 输出 | 3 x PNP transistor |
| Input, logic unit | Transistor (PNP) |
| Protection rating | IP 66 front panel |
| Input, analogue | 0/1...5 V |
