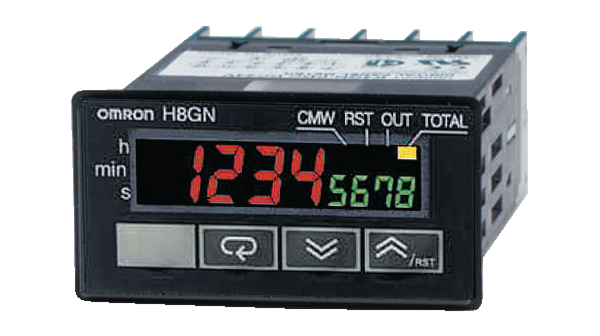

Omron

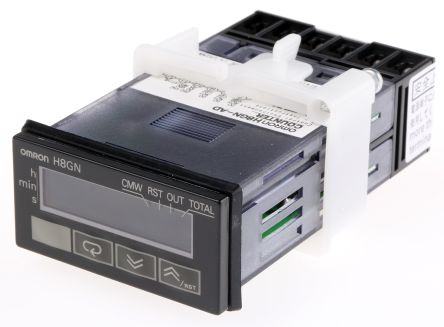

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接类型 | Screw |
| 计数方向 | Bi-Directional |
| 计数模式 | Seconds |
| 数字高度 | 7 mm |
| Display Range | -999 → 9999 |
| 显示器类型 | LCD |
| 输入类型 | Voltage |
| 最大计数频率 | 5kHz |
| 最高工作温度 | +55°C |
| 最低工作温度 | -10°C |
| 安装类型 | Panel |
| 数字位数 | 4 |
| 复位方法 | Electrical, Manual |
| 电源电压 | 24 V dc |
| 重量 | 80g |
| Counter type | electronical |
| 显示 | LED, LED |
| Body dimensions | 48 x 24 x 83mm |
| Counter kind | progressive/reversing, with EEPROM memory, with preset value |
| Resetting method | electrical, finger activated |
| 安装 | panel |
| Electrical connection | screw terminals |
| 电源 | 24VDC, external |
| Max environment humidity | 85% |
| Counting range | -999...9999/9999h |
| Output 1 type | SPDT |
| Gross weight | 0 mg |
| Operating temperature | -10...55°C |
| Body colour | black |
| Output 1 electrical parameters | 30VDC/250VAC/3A |
| Type of counted signal | time/pulses |
| 密封 | IP67 (from the front) |
| Input 1 type | PNP, contact |
| Power consumption | 1.5W |
| Max IN1 counting frequency | 5kHz |
| Display type | LCD |
| 外形尺寸 | 48 x 24 x 83 mm |
| Counting frequency max | 30 |
| Character height | 7 |
| Protection rating | IP 66 front panel |
| Displays | 2 x 4-digit |
| Operating voltage | 24 VDC |
| Front panel cut-out | 45 x 22.2 mm |
| 输出 | Change-over contact (CO) |
| Counter input | Contact |
| Termination type | Screw Terminal |
| Description | Preselection counter/time lag relay |
| 输入类型 | 电压 |
| 计数模式 | 秒 |
| 复位方法 | 电气、手动 |
| 数字数目 | 4 |
| 显示器类型 | LCD |
| 最高工作温度 | +55°C |
| 重量 | 80g |
| 电源电压 | 24 V 直流 |
| 安装类型 | 面板安装 |
| 最低工作温度 | -10°C |
| 测量范围 | -999 → 9999 |
| 计数方向 | 双向 |
| 显示范围 | -999 → 9999 |
| 系列 | H8GN |
| 连接类型 | 螺钉 |
| 最大计数频率 | 5kHz |
| 数字高度 | 7 mm |
