Omron

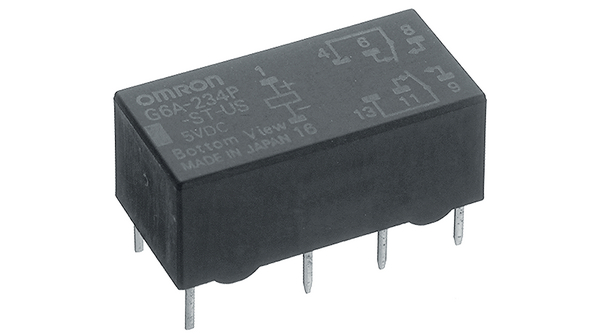

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 应用 | Power |
| CAD绘图 | 3D CAD Model |
| 线圈电阻 | 2.88 kΩ |
| 线圈电压 | 24V dc |
| 联系配置 | DPDT |
| 触点材料 | Gold Clad Silver Palladium |
| 深度 | 10.1mm |
| 身高 | 8.4mm |
| 长度 | 20.2mm |
| 最高工作温度 | +70°C |
| 最大开关电源AC | 125 VA |
| 最大开关电源DC | 60 W |
| 最低工作温度 | -40°C |
| 安装类型 | PCB |
| 终端类型 | Through Hole |
| 线圈类型 | :DC Monostable |
| Contact Current Max | :2A |
| Contact Voltage AC Nom | :125V |
| Contact Voltage DC Nom | :30V |
| Coil Voltage VDC Nom | :24V |
| 线圈电流 | :8.3mA |
| Coil Power Cont | :200mW |
| Relay Mounting | :Through Hole |
| 外部高度 | :20.2mm |
| 外宽 | :10.1mm |
| 外部深度 | :8mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, UL |
| Approval Category | :CCIT |
| Coil Operating Lower Percent Limit | :70% |
| Coil Operating Upper Percent Limit | :150% |
| Contact Current AC Max | :300mA |
| Contact Current DC Max | :1A |
| Contact Voltage AC Max | :110V |
| Contact Voltage DC Max | :60V |
| DC Coil Power | :200mW |
| External Length / Height | :20.2mm |
| No. of Poles | :2 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| Operating Time | :5ms |
| 释放时间 | :5ms |
| 系列 | :G6A |
| Switch Current Max | :2A |
| Switching Current Max | :2A |
| Weight (kg) | 0.0035 |
| Tariff No. | 85364900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
