Omron

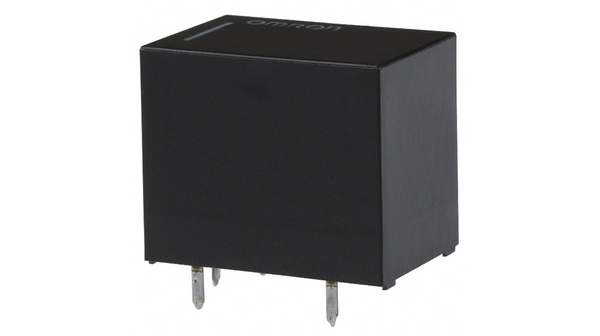

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 应用 | Power |
| 线圈电阻 | 63 Ω |
| 线圈电压 | 5V dc |
| 联系配置 | SPDT |
| 触点材料 | Silver Tin Oxide |
| 深度 | 16.5mm |
| 身高 | 19mm |
| 长度 | 22.5mm |
| 最高工作温度 | +85°C |
| 最大开关电源AC | 1.2 kVA |
| 最大开关电源DC | 240 W |
| 最低工作温度 | -25°C |
| 安装类型 | PCB |
| 终端类型 | Solder |
| 产品范围 | :OMRON - G5LE Series |
| Contact Current | :10A |
| Contact Voltage VAC | :120V |
| Contact Voltage VDC | :30V |
| Relay Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, VDE |
| Approval Category | :UL Recognised |
| 线圈电流 | :79.4mA |
| Coil Operating Lower Percent Limit | :75% |
| Coil Operating Upper Percent Limit | :130% |
| 线圈类型 | :DC |
| Coil Voltage VDC Nom | :5V |
| Contact Current AC Max | :10A |
| Contact Current DC Max | :8A |
| Contact Current Max | :10A |
| Contact Voltage AC Max | :120V |
| Contact Voltage AC Nom | :120V |
| Contact Voltage DC Max | :30V |
| Contact Voltage DC Nom | :30V |
| 额定电流 | :79.4mA |
| DC Coil Power | :400mW |
| 外部深度 | :16.5mm |
| 外部高度 | :19mm |
| External Length / Height | :19mm |
| 外宽 | :22.5mm |
| No. of Pins | :5 |
| No. of Poles | :1 |
| Nom Operating Power | :400mW |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Operating Time | :10ms |
| PCB孔直径 | :1.3mm |
| 继电器类型 | :Power |
| Weight (kg) | 0.012 |
| Tariff No. | 85364900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
