Omron Electronics

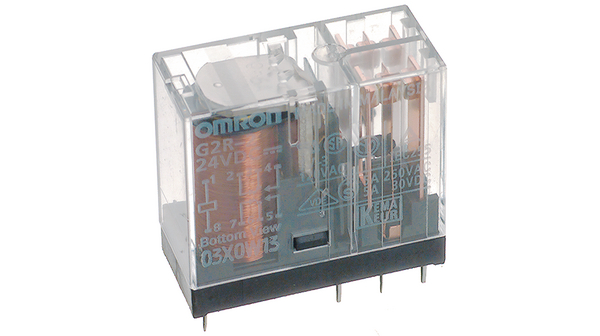

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形尺寸 | see |
| 安装 | PCB |
| Relay variant | miniature |
| Contact current max | 5A |
| AC contacts rating (at resistance load) | 5 A / 250 VAC |
| 接触电阻 | 50mΩ |
| Relay type | electromagnetic |
| Operating temperature | -40...70°C |
| spg | 100 |
| Switched voltage | max 380V AC, max 125V DC |
| Contacts pitch | 5mm |
| Coil current | 43.6mA |
| Body dimensions | 29 x 13 x 25.5mm |
| Multiplicity | 1 |
| Contacts configuration | DPDT |
| Release time | 5ms |
| Gross weight | 0.02 kg |
| Associated items | PODST-3 |
| Rated coil voltage | 12V DC |
| Output configuration | see |
| Relay series | G2R |
| Enclosure description | Standard seal |
| Collective package [pcs] | 100 |
| Leads | for PCB |
| Operate time | 15ms |
| 线圈电阻 | 275Ω |
| DC contacts rating (at resistance load) | 5 A / 30 VDC |
| Dimensions L x W x H | 29 x 13 x 25.5 mm |
| Ucoil | 12 |
| Rcoil | 275 |
| Switching voltage | 380 |
| 联系方式 | 2 change-over (CO) |
| Pcoil | 530 |
| Switching current | 5 A |
| Switching capacity | 1250 VA |
| 测试电压 | 5 |
| 间距 | 5 |
| Temperature range | -40...+70 °C |
| Protection rating | IP 54 |
| Contact material | AgSnln |
