Omron Industrial

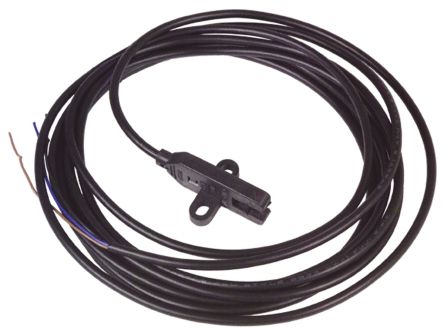

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Optical Switches, Transmissive, Phototransistor Output |
| RoHS | RoHS Compliant |
| 输出设备 | Phototransistor |
| 槽宽 | 5 mm |
| 光圈宽度为0.5mm | 0.8 mm |
| 最大集电极电流 | 35 mA |
| 最高工作温度 | + 55 C |
| 最低工作温度 | - 25 C |
| 感应距离为5mm | 5 mm |
| 检测方法 | Transmissive, Slotted, Through-Beam Type |
| 工厂包装数量 | 1 |
| 波长 | 940 nm |
| 零件号别名 | 1275209 EESX872NC |
| 典型工作电源电压 | 9|12|15|18 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 55 |
| 最低工作温度 | -25 |
| DC Supply Voltage | 5 to 24 |
| 感应距离为5mm | 5 |
| 模块/集成电路分类 | Module |
| 输出类型 | NPN |
| 切换模式 | Light ON |
| 最大工作电源电压 | 24 |
| 最低工作电源电压 | 5 |
| 引脚数 | 3 |
| 工业别名 | EE-SX872 |
| 子类别 | Proximity Sensor |
| 交货期 | 56 Days |
| 安装类型 | Chassis Mount, M3 Screw |
| 电流 - 电源 | 35mA |
| 电压 - 电源 | 5 V ~ 24 V |
| 标准包装 | 1 |
| 封装/外壳 | Module, Pre-Wired |
| 输出配置 | NPN - Open Collector/Light-ON |
| RoHS指令 | Lead free / RoHS Compliant |
| Sensing Range Max | :5mm |
| 输出电流 | :100mA |
| Sensor Output | :NPN |
| Supply Voltage DC Min | :5V |
| Supply Voltage DC Max | :24V |
| 输入电流 | :35mA |
| Input Current Max | :35mA |
| No. of Channels | :1 |
| Weight (kg) | 0.018 |
| Tariff No. | 90318038 |
| Current,Switching | 100mA |
| 外形尺寸 | 12.3mmLx19.1mmWx31.1mmH |
| 功能 | Proximity |
| IPRating | IP60 |
| LightSource | InfraredLight |
| Material,Casing | PBT(PolybutyleneTerephthalate) |
| MountingType | FlatSurface |
| 输出 | NPN |
| PrimaryType | Photoelectric |
| Range,Measurement | 5mm |
| SensingMode | Through-Beam |
| 标准 | cULusRecognized,CEMarked |
| 技术 | Photoelectric |
| 端子 | Pre-Wired |
| 类型 | Infrared |
| Voltage,Supply | 24VDC |
| Voltage,Switching | 24VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
