Omron Industrial

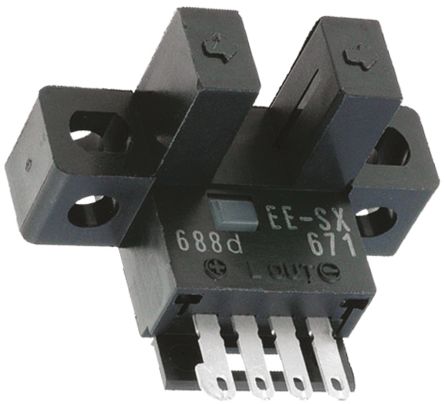

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Optical Switches, Transmissive, Phototransistor Output |
| RoHS | RoHS Compliant |
| 输出设备 | Phototransistor |
| 槽宽 | 5 mm |
| 光圈宽度为0.5mm | 0.8 mm |
| 最大集电极电流 | 50 mA |
| 最高工作温度 | + 55 C |
| 最低工作温度 | - 25 C |
| 感应距离为5mm | 5 mm |
| 检测方法 | Transmissive, Slotted, Through-Beam Type |
| 工厂包装数量 | 1 |
| 波长 | 940 nm |
| 零件号别名 | 1385695 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 55 |
| 最大工作电源电压 | 24VDC |
| Package Height | 15.5 |
| 安装 | Panel |
| 输出类型 | PNP |
| 引脚数 | 4 |
| Shock Rating | 500 |
| 切换模式 | Light ON/Dark ON |
| Package Width | 20.7 |
| PCB | 4 |
| Package Length | 26.2 |
| 最低工作温度 | -25 |
| 类型 | Thru-beam |
| Maximum Sensing Distance | 0.005 |
| 光源 | Infrared |
| 工业别名 | EE-SX671P |
| 子类别 | Photoelectric Sensor |
| 交货期 | 56 Days |
| 安装类型 | Chassis Mount |
| 电流 - 电源 | 30mA |
| 电压 - 电源 | 5 V ~ 24 V |
| 标准包装 | 1 |
| 封装/外壳 | Module, Connector |
| 其他名称 | EESX671P |
| 输出配置 | PNP - Dark-ON/Light-ON - Selectable |
| RoHS指令 | Lead free / RoHS Compliant |
| Sensing Range Max | :5mm |
| 输出电流 | :50mA |
| Sensor Output1 | :PNP |
| Supply Voltage DC Min | :5V |
| Supply Voltage DC Max | :24V |
| SVHC | :No SVHC (20-Jun-2013) |
| 检测范围 | :0mm to 5mm |
| Supply Voltage Range DC | :5V to 24V |
| Weight (kg) | 0.003 |
| Tariff No. | 85414090 |
| Current,Switching | 50mA |
| 外形尺寸 | 26.2mmLx14.5mmWx15.5mmH |
| 功能 | Vane |
| IPRating | IP50 |
| MountingType | FlatSurface |
| 输出 | PNP |
| PrimaryType | Photoelectric |
| Range,Measurement | 5mm |
| SensingMode | Through-Beam |
| 技术 | Photoelectric |
| 端子 | Connector |
| Voltage,Supply | 24VDC |
| Voltage,Switching | 24VDC |
| Leads | connectors |
| Sensor type | photoelectric |
| Operation modes | DARK-ON, LIGHT-ON |
| Multiplicity | 1 |
| Range | 5mm |
| Gross weight | 1 g |
| Operating current max | 50mA |
| Operation mode | through-beam (with slot) |
| Operating temperature | -25...55°C |
| 电源电压 | 5...24V DC |
| 产品特点 | L-shaped |
| Output configuration | PNP |
| 密封 | IP50 |
| 供电电流 | 30mA |
| Switching frequency | 1kHz |
