Omron Electronics

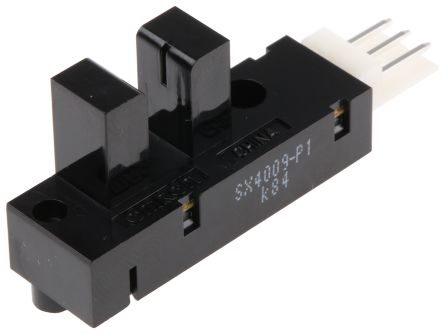

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Optical Switches, Transmissive, Photo IC Output |
| RoHS | RoHS Compliant |
| 输出设备 | Open Collector, Buffer |
| 槽宽 | 5 mm |
| 光圈宽度为0.5mm | 0.5 mm |
| 最高工作温度 | + 75 C |
| 最低工作温度 | - 25 C |
| 低电平输出电压 | 0.4 V |
| 检测方法 | Transmissive, Slotted |
| 工厂包装数量 | 100 |
| 零件号别名 | 429292 EESX4009P1CHN |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 75 |
| Gap Width | 5 |
| 最低工作温度 | -25 |
| Slit Width | 0.5 |
| 每个芯片的通道数 | 1 |
| 最大功率耗散 | 250 |
| 类型 | Transmissive |
| 引脚数 | 3 |
| 工业别名 | EE-SX4009-P1 |
| 子类别 | Photointerrupter |
| 交货期 | 98 Days |
| 安装类型 | Chassis Mount |
| 感应距离为5mm | 0.197" (5mm) |
| 电流 - 电源 | 30mA |
| 电压 - 电源 | 10V |
| 标准包装 | 100 |
| 封装/外壳 | Module, Connector |
| 输出配置 | NPN - Open Collector/Light-ON |
| RoHS指令 | Lead free / RoHS Compliant |
| 系列 | EE-SX3009-P1/4009-P1 |
| No. of Channels | :1 |
| Optocoupler Output Type | :Phototransistor |
| 输入电流 | :30mA |
| 输出电压 | :28V |
| Opto Case Style | :Slotted |
| No. of Pins | :3 |
| SVHC | :No SVHC (20-Jun-2013) |
| 连续集电极电流Ic最大 | :30mA |
| Current Ic Continuous a Max | :30mA |
| 外部深度 | :11mm |
| External Length / Height | :21mm |
| 外宽 | :44.5mm |
| Frequency Min | :3kHz |
| 间隙宽度 | :5mm |
| Operating Temperature Max | :75°C |
| Operating Temperature Min | :-25°C |
| 工作温度范围 | :-25°C to +75°C |
| Voltage Vcc Max | :10V |
| Voltage Vcc Min | :5V |
| Voltage Voh Min | :9V |
| Voltage Vol Max | :0.3V |
| Weight (kg) | 0.002 |
| Tariff No. | 85414090 |
| BodyStyle | Rectangular |
| Brand/Series | SX4 |
| Current,Switching | 16mA |
| 功能 | Vane |
| 输出 | Transistor |
| PrimaryType | Photoelectric |
| SensingMode | Transmissive |
| 技术 | Photoelectric |
| 端子 | Connector |
| Voltage,Supply | 10V |
| Voltage,Switching | 28V |
| Leads | stud terminals |
| Sensor type | photoelectric |
| Operation modes | DARK-ON |
| Multiplicity | 1 |
| Operation mode | through-beam (with slot) |
| Gross weight | 4.25 g |
| Range | 5mm |
| Operating temperature | -40...75°C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
