Omron Industrial

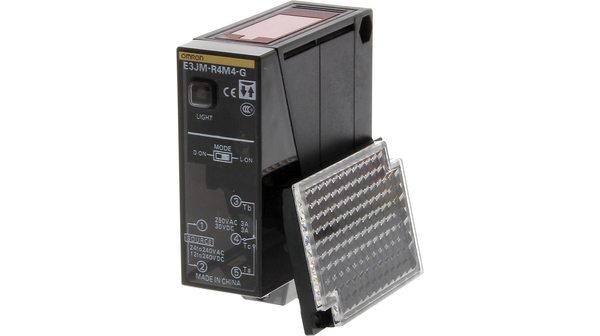

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Photoelectric Sensors |
| RoHS | RoHS Compliant |
| 检测方法 | Polarized Retroreflective |
| 感应距离为5mm | 4 m (13.1 ft) |
| 光源 | Infrared LED |
| 连接方式 | Screw Terminals |
| 输出配置 | Relay |
| 系列 | E3JM |
| 工厂包装数量 | 1 |
| 零件号别名 | 178473 |
| 最大工作电源电压 | 240 |
| 欧盟RoHS指令 | Compliant |
| 最低工作电源电压 | 12 |
| 模块/集成电路分类 | Module |
| 引脚数 | 5 |
| 连接方式 | Terminal Block |
| 防护等级 | IEC IP66 |
| 电压 - 电源 | 12 V ~ 240 V, 24 V ~ 240 V |
| 工作温度 | -25°C ~ 55°C |
| 标准包装 | 1 |
| 响应时间 | 30ms |
| 电缆长度 | * |
| RoHS指令 | Lead free / RoHS Compliant |
| Sensing Range Max | :4m |
| Sensor Output1 | :Relay |
| Supply Voltage DC Min | :12V |
| Supply Voltage DC Max | :240V |
| SVHC | :No SVHC (20-Jun-2013) |
| 联系配置 | :SPDT |
| 外部深度 | :75mm |
| External Length / Height | :65mm |
| 外宽 | :25mm |
| IP / NEMA Rating | :IP66 |
| Operating Temperature Max | :55°C |
| Operating Temperature Min | :-25°C |
| Output Current Max | :3A |
| 功耗 | :2W |
| Sensing Distance Max | :4m |
| Sensing Distance Min | :0mm |
| 检测范围 | :0m to 4m |
| Sensor Input | :Optical |
| Supply Voltage AC Max | :240V |
| Supply Voltage AC Min | :20V |
| Supply Voltage Range DC | :12V to 240V |
| Weight (kg) | 0.18 |
| Tariff No. | 90318038 |
| Body dimensions | 25 x 75 x 65mm |
| Sensor type | photoelectric |
| Operation modes | DARK-ON, LIGHT-ON |
| Multiplicity | 1 |
| Operation mode | reflective with reflector |
| Body material | ABS |
| Gross weight | 0.17 kg |
| Operating current max | 3A |
| Operating temperature | -25...55°C |
| 电源电压 | 24...240V AC, 12...240V DC |
| Output configuration | SPDT |
| Range | 0...4m |
| 响应时间 | |
| 密封 | IP66 |
| 产品特点 | Reflector is provided with sensor. |
