Omron Industrial

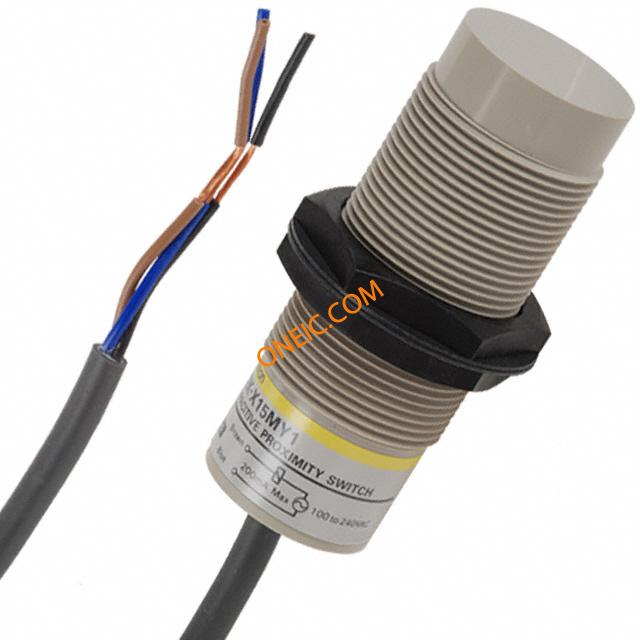

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 典型工作电源电压 | 12|15|18|24 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 最低工作温度 | -25 |
| DC Supply Voltage | 10 to 30 |
| Sensing Distance | 15 |
| 模块/集成电路分类 | Module |
| 输出类型 | NPN |
| 切换模式 | NO |
| 最大工作电源电压 | 30 |
| 最低工作电源电压 | 10 |
| 引脚数 | 3 |
| 工业别名 | E2K-X15ME1 |
| 子类别 | Proximity Sensor |
| 交货期 | 56 Days |
| 屏蔽 | Unshielded |
| 传感器类型 | Capacitive |
| 检测对象 | Metallic and Non-Metallic |
| 响应频率 | 100Hz |
| 材料 - 主体 | ABS Plastic |
| 感应距离为5mm | 0.591" (15mm) |
| 标准包装 | 1 |
| 电压 - 电源 | 10 V ~ 30 V |
| 终端类型 | 3-Wire |
| 封装/外壳 | Cylinder, Threaded - M30 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 1 |
| 产品种类 | Proximity Sensors |
| 检测方法 | Capacitive |
| 系列 | E2K-X |
| 安装风格 | Panel |
| 电源电压 | 12 VDC to 24 VDC |
| 最低工作温度 | - 25 C |
| 输出配置 | NPN |
| 零件号别名 | 27M2370 |
| 最高工作温度 | + 55 C |
| 电源电流 | 15 mA |
| RoHS | RoHS Compliant |
| Supply Voltage DC Min | :10V |
| Supply Voltage DC Max | :30V |
| Contact Current Max | :200mA |
| Sensing Face Diameter | :30mm |
| Sensing Range Max | :0.59" |
| Sensor Housing | :Cylindrical |
| Sensor Input | :Capacitive |
| Sensor Output | :NPN |
| Weight (kg) | 0.204 |
| Tariff No. | 00000000 |
| BodyStyle | Cylindrical |
| Current,Rating | 8mA@12VDC,15mA@24VDC |
| Current,Switching | 200mA |
| Frequency,Switching | 100Hz |
| 功能 | Proximity |
| IPRating | IP66 |
| Material,Housing | ABS |
| MountingStyle | TwometallockwashersandM30nutsincluded |
| MountingType | M30Threaded |
| 输出 | NPN-NO |
| PrimaryType | Proximity |
| Range,Measurement | 15mm |
| 标准 | ULRecognized,FileNumberE76675,CSACertified,FileNumberLR45951 |
| 技术 | Capacitive |
| Temperature,Ambient,Maximum | +70°C |
| Temperature,Ambient,Minimum | -25°C |
| 端子 | 3-WireCable |
| 类型 | Capacitive |
| Voltage,Supply | 24VDC |
| Voltage,Switching | 1V |
| Operating current max | 200mA |
| Multiplicity | 1 |
| 连接方式 | lead 2m |
| Switching frequency max | 100Hz |
| Gross weight | 0.21 kg |
| Body material | ABS |
| Operating temperature | -25...70°C |
| 外形尺寸 | see |
| 电源电压 | 10...30V DC |
| Range | 0...15mm |
| Output configuration | NPN / NO |
| 密封 | IP66 |
| Switch housing | M30 |
| Sensor type | capacitive |
| Front type | embedded |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
