Omron Industrial

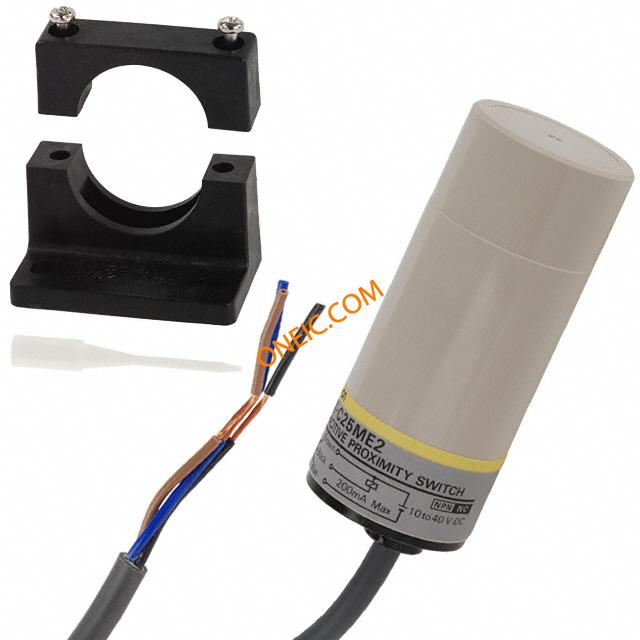

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 典型工作电源电压 | 12|15|18|24 |
| 类型 | Capacitive |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 最低工作温度 | -25 |
| DC Supply Voltage | 10 to 40 |
| 感应距离为5mm | 25 |
| 模块/集成电路分类 | Module |
| 输出类型 | NPN |
| 切换模式 | NO |
| Maximum Operating Supply Voltage | 40 |
| Minimum Operating Supply Voltage | 10 |
| 引脚数 | 3 |
| 工业别名 | E2K-C25ME1 |
| 子类别 | Proximity Sensor |
| 交货期 | 56 Days |
| 屏蔽 | Unshielded |
| 传感器类型 | Capacitive |
| 检测对象 | Metallic and Non-Metallic |
| 响应频率 | 70Hz |
| 材料 - 主体 | ABS/PC |
| 感应距离为5mm | 0.118" ~ 0.984" (3mm ~ 25mm) ADJ |
| 标准包装 | 1 |
| 电压 - 电源 | 10 V ~ 40 V |
| 终端类型 | 3-Wire |
| 封装/外壳 | Cylinder |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 1 |
| 产品种类 | Proximity Sensors |
| 检测方法 | Capacitive |
| 系列 | E2K-C |
| 安装风格 | Bracket |
| 电源电压 | 12 VDC to 24 VDC |
| 最低工作温度 | - 25 C |
| 输出配置 | NPN |
| 零件号别名 | 52F4322 |
| 最高工作温度 | + 70 C |
| 电源电流 | 15 mA |
| RoHS | RoHS Compliant |
| Supply Voltage DC Min | :10V |
| Supply Voltage DC Max | :40V |
| Sensing Face Diameter | :34mm |
| Sensing Range Max | :0.98" |
| Sensing Range Min | :0.12" |
| Sensor Housing | :Cylindrical |
| Sensor Input | :Capacitive |
| Sensor Output | :NPN |
| Weight (kg) | 0.231 |
| Tariff No. | 90318038 |
| Operating current max | 200mA |
| Multiplicity | 1 |
| 连接方式 | lead 2m |
| Switching frequency max | 70Hz |
| Gross weight | 0.24 kg |
| Body material | ABS |
| Operating temperature | -25...70°C |
| 电源电压 | 10...30V DC |
| Range | 3...25mm |
| Output configuration | NPN / NO |
| 密封 | IP67 |
| Switch housing | Ø34 |
| Sensor type | capacitive |
| Front type | embedded |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
