Omron Industrial

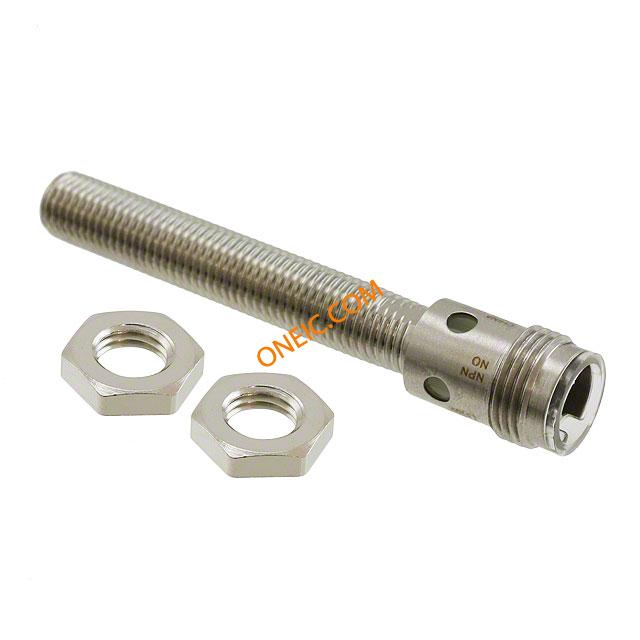

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 最低工作温度 | -40 |
| DC Supply Voltage | 10 to 32 |
| Package Width | 15 |
| PCB | 4 |
| 典型工作电源电压 | 12|15|18|24 |
| 欧盟RoHS指令 | Compliant |
| 输出类型 | NPN |
| 滞后 | 10% |
| 切换模式 | NO |
| 安装 | Panel |
| 体风格 | Barrel |
| 响应频率 | 1500 |
| 终端类型 | Connector |
| 最高工作温度 | 70 |
| 阀体材质 | Stainless Steel |
| Package Length | 65 |
| 最低工作电源电压 | 10 |
| 引脚数 | 4 |
| Package Height | 13 |
| 感应距离为5mm | 2 |
| 模块/集成电路分类 | Module |
| 最大工作电源电压 | 32 |
| 屏蔽 | Shielded |
| 传感器类型 | Inductive |
| 检测对象 | Metallic |
| 响应频率 | 1.5kHz |
| 材料 - 主体 | Stainless Steel |
| 感应距离为5mm | 0.079" (2mm) |
| 标准包装 | 1 |
| 电压 - 电源 | 10 V ~ 32 V |
| 封装/外壳 | Cylinder, Threaded - M8 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 1 |
| 产品种类 | Proximity Sensors |
| 检测方法 | Inductive |
| 系列 | E2A |
| 桶规格 | M8 |
| 安装风格 | Screw |
| 电源电压 | 12 VDC to 24 VDC |
| 最低工作温度 | - 40 C |
| 输出配置 | NPN |
| 零件号别名 | 1774989 |
| 最高工作温度 | + 70 C |
| 电源电流 | 10 mA |
| RoHS | No |
| Sensor type | inductive |
| Multiplicity | 1 |
| 连接方式 | connector M12 |
| Switching frequency max | 1.5kHz |
| Gross weight | 0.06 kg |
| Front type | embedded |
| Body material | stainless steel |
| Operating temperature | -40...70°C |
| 针数 | 4 |
| 电源电压 | 12...24V DC |
| Overall length | 65mm |
| Range | 0...2mm |
| Output configuration | NPN / NO |
| 密封 | IP67 |
| Switch housing | M8 |
| Operating current max | 200mA |
