Omron Industrial

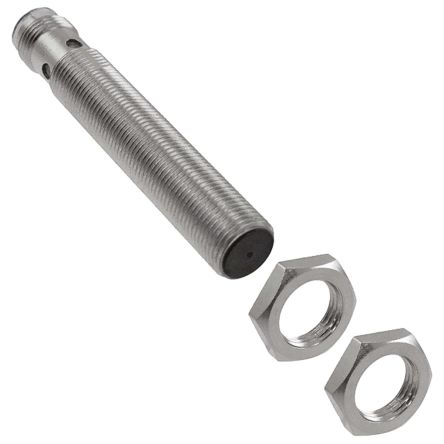

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 典型工作电源电压 | 12|15|18|24 |
| Response Frequency | 1000 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| DC Supply Voltage | 10 to 32 |
| 感应距离为5mm | 4 |
| 模块/集成电路分类 | Module |
| 输出类型 | PNP |
| 终端类型 | Connector |
| 阀体材质 | Brass |
| 切换模式 | NO |
| Maximum Operating Supply Voltage | 32 |
| 体风格 | Barrel |
| 最低工作温度 | -40 |
| 滞后 | 10% |
| Minimum Operating Supply Voltage | 10 |
| 引脚数 | 4 |
| 屏蔽 | Unshielded |
| 传感器类型 | Inductive |
| 检测对象 | Metallic |
| 材料 - 主体 | Nickel-Plated Brass |
| 响应频率 | 1MHz |
| 感应距离为5mm | 0.157" (4mm) |
| 标准包装 | 1 |
| 电压 - 电源 | 10 V ~ 32 V |
| 其他名称 | E2AM08KN04M1B1 |
| 封装/外壳 | Cylinder, Threaded - M8 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 1 |
| 产品种类 | Proximity Sensors |
| 检测方法 | Inductive |
| 系列 | E2A |
| 桶规格 | M8 |
| 安装风格 | Screw |
| 电源电压 | 12 VDC to 24 VDC |
| 最低工作温度 | - 40 C |
| 输出配置 | PNP |
| 最高工作温度 | + 70 C |
| 电源电流 | 10 mA |
| RoHS | RoHS Compliant |
| spg | 2 |
| Sensor type | inductive |
| Multiplicity | 1 |
| Front type | non-embedded |
| 连接方式 | connector M12 |
| Switching frequency max | 1kHz |
| Gross weight | 0.02 kg |
| Operating current max | 200mA |
| Body material | brass |
| Operating temperature | -40...70°C |
| 针数 | 4 |
| 电源电压 | 12...24V DC |
| Overall length | 43mm |
| Range | 0...4mm |
| Output configuration | PNP / NO |
| 密封 | IP67 |
| Configuration of application | see |
| Collective package [pcs] | 2 |
| Switch housing | M8 |
| Body plating | nickel |
| 感应物体 | Metallic |
| 传感器类型 | Inductive |
| 材料 - 本体 | Nickel-Plated Brass |
| 电压 - 电源 | 10 V ~ 32 V |
| 感应距离 | 0.157" (4mm) |
| 屏蔽 | Unshielded |
| 封装/外壳 | Cylinder, Threaded - M8 |
| 输出类型 | PNP-NO |
| 系列 | E2A |
| 响应频率 | 1MHz |
| 终端类型 | Connector |
| Sensing distance max | 4 |
| Operating temperature max | +70 |
| Operating voltage min | 10 |
| Load current | max.200 mA |
| Operating voltage max | 32 |
| Operating temperature min | -40 |
| 长度 | 43 |
| Construction form | M8 |
| 外壳材料 | Brass (CuZn) |
| Operating voltage | 10...32 VDC |
| 输出 | PNP, make contact |
| Dimensions ø x L | M8 x 43 |
| Protection rating | IP 67/69K |
| Panel-mount type | not flush |
| 螺纹尺寸 | M8 |
| IP 防护等级 | IP67 |
| 电源电压 | 12 → 24 V 直流 |
| 最高工作温度 | +70°C |
| 安装类型 | 面板安装 |
| 尺寸 | 43 x 13 mm |
| 最低工作温度 | -40°C |
| 极性反接保护 | 是 |
| 宽度 | 13mm |
| 最大直流电压 | 32V |
| 短路过载保护 | 是 |
| 检测范围 | 4 mm |
| 主体样式 | 柱体 |
| 长度 | 43mm |
| 切换频率 | 1 kHz |
| 外壳材料 | 黄铜 |
| 接端类型 | M8 连接器 |
| 切换电流 | 200 mA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
