Omron Electronics

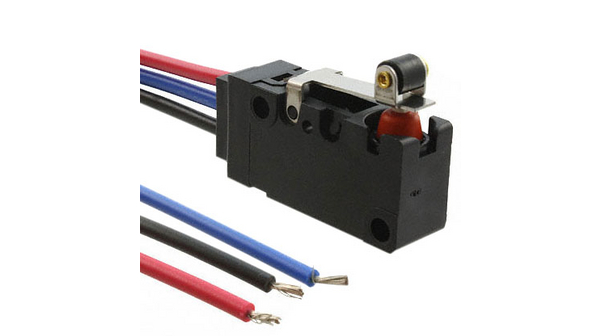

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | D2VW-5L2-A1-M |
| 子类别 | Switch Snap Action |
| 交货期 | 105 Days |
| 封装 | Bulk |
| Differential Travel | 0.020" (0.5mm) |
| 开关功能 | On-Mom |
| 额定电流 | 5A (AC/DC) |
| 操作力，扭矩 | 230gf |
| 安装类型 | Chassis Mount |
| 额定电压 - AC | 125V |
| 端接类型 | Wire Leads |
| 电气寿命 | 100,000 Cycles |
| 工作职位 | 0.815" (20.7mm) |
| 超程 | 0.030" (0.8mm) |
| 工作温度 | -40°C ~ 85°C |
| 执行器类型 | Lever, Roller |
| 标准包装 | 10 |
| 额定电压 - DC | 30V |
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 预行程 | 0.063" (1.6mm) |
| 释放力 | 20gf |
| 机械寿命 | 10,000,000 Cycles |
| 电路 | SPDT |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 10 |
| 电压额定值AC | 250 V |
| 产品种类 | Basic / Snap Action Switches |
| IP等级 | IP 67 |
| 系列 | D2VW |
| 触点形式 | SPDT |
| 直流电额定电压 | 30 V |
| 操作力 | 2.3 N |
| 执行器 | Roller Lever |
| 零件号别名 | 366098 673614 OMRD2VW5L2A1M |
| RoHS | RoHS Compliant |
| 联系配置 | :SPDT |
| Microswitch Type | :Snap Action |
| 执行器风格 | :Short Roller Lever |
| 开关操作 | :(Not Applicable) |
| Operating Force Max | :2.25N |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :5A |
| Switch Terminals | :Wire Leaded |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Roller Lever |
| Approval Bodies | :CSA, UL |
| Contact Current AC | :5A |
| Contact Current AC Max | :5A |
| Contact Current DC Max | :5A |
| Contact Voltage AC Max | :250V |
| Contact Voltage DC Max | :125V |
| Differential Travel Max | :0.5mm |
| 外部深度 | :33mm |
| External Length / Height | :15.9mm |
| 外宽 | :10.3mm |
| Fixing Centres LxW | :22.2mm |
| IP / NEMA Rating | :IP67 |
| 绝缘电阻 | :100Mohm |
| 引线长度 | :300mm |
| Lever Length | :15.1mm |
| No. of Electrical Operations | :100000 |
| Operating Temperature Max | :90°C |
| Operating Temperature Min | :-40°C |
| Over Travel Min | :0.8mm |
| Pre-travel | :1.6mm |
| 终端类型 | :Wire Leads |
| Weight (kg) | 0.018 |
| Tariff No. | 85365007 |
| Lever length | 24mm |
| Leads | 300mm leads, on right |
| Contacts configuration | SPDT |
| Switches features | with lever (with roller) |
| Switching torque | 2.25N |
| Mechanical durability | 10000000cycles |
| Multiplicity | 1 |
| Electrical life | 100000cycles |
| Gross weight | 0.02 kg |
| Operating temperature | -40...85°C |
| Switch type | microswitch |
| 接触镀层 | silver plated |
| Stable positions number | 1-position |
| DC contacts rating (at resistance load) | 5 A / 30 VDC |
| Body dimensions | 33 x 10.3 x 15.9mm |
| 密封 | IP67 |
| spg | 10 |
| Collective package [pcs] | 10 |
| AC contacts rating (at resistance load) | 5 A / 250 VAC |
| Max contact resistance: | 100mΩ |
| Switching method | ON-(ON) |
