Omron Electronics

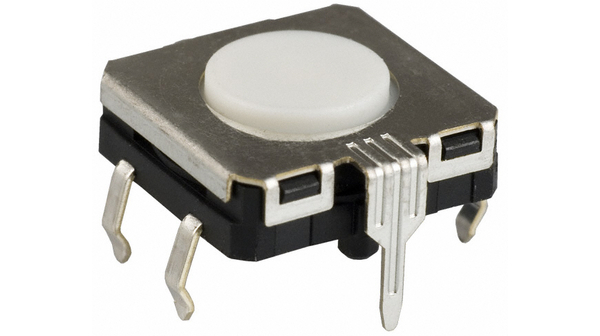

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Flat Plunger |
| 产品长度 | 12 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 极掷配置 | SPST |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 接地端子 | Yes |
| 交换机配置 | N.O. |
| 促动器长度 | 0.75 |
| 封装 | Bag |
| 最大直流额定电压 | 24 |
| 操作力 | 1.96 |
| 密封 | Rubber |
| 终端类型 | PC Pins |
| 最低工作温度 | -25 |
| 最大额定电流 | 0.05@24VDC |
| 机械寿命 | 3000000 |
| 执行器颜色 | White |
| 卖备选方案 | B3W-4100BYOMZ |
| 工业别名 | B3W-4100 |
| 子类别 | Switch Tactile |
| 交货期 | 365 Days |
| 外形 | 12.00mm x 12.00mm |
| 操作力 | 200gf |
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 标准包装 | 100 |
| 开关功能 | Off-Mom |
| 端接类型 | PC Pin |
| 工作温度 | -25°C ~ 70°C |
| 致动器方向 | Top Actuated |
| 开关行程 | 0.30mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 4.30mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 3,000,000 Cycles |
| 触点额定电压 | 0.05A @ 24VDC |
| 产品特点 | Grounding Pin, Sealed - Fully |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 100 |
| 额定电流 | 50 mA |
| 工作温度范围 | - 25 C to + 70 C |
| 系列 | B3W |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 干高度 | 4.3 mm |
| 安装风格 | Through Hole |
| 产品种类 | Tactile Switches |
| 触点电镀 | Silver |
| 执行器 | Round |
| 安装方向 | Straight |
| 零件号别名 | 679686 B3W4100BYOMZ B3W4100NC B3WZ4024A |
| RoHS | RoHS Compliant |
| Leads | for PCB, straight |
| Multiplicity | 1 |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
| Key stroke | 0.3mm |
| Switching torque | 1.96N |
| Button height (measured from PCB) | 4.3mm |
| Contacts configuration | SPST-NO |
| Terminal pitch | 5x12mm |
| Actuator colour | white |
| Gross weight | 1.92 g |
| Stable positions number | 1-position |
| Operating temperature | -25...70°C |
| Button shape | round |
| Min insulation resistance | 100MΩ |
| Body dimensions | 12 x 12mm |
| Switches features | with ground terminal |
| Switch type | microswitch |
| Mechanical durability | 3000000cycles |
| Max contact resistance: | 100mΩ |
| Switching method | OFF-(ON) |
| 操作力 | 200 gf |
| SubCategory | Tactile Switch |
| Operating direction | Vertical |
| MainCategory | Switches |
| Dimensions (WxDxH) | 12x12 mm |
| 联系配置 | SPST-NO |
| Dimensions L x W x H | 12 x 12 x 7.8 mm |
| 额定电流 | 50 mA |
| Button colour | white |
| 测试电压 | 500 |
| 额定电压 | 24 |
| Temperature range | -25...+70 °C |
| Switching type | Momentary function |
| Contact material | Ag |
