Omron Electronics

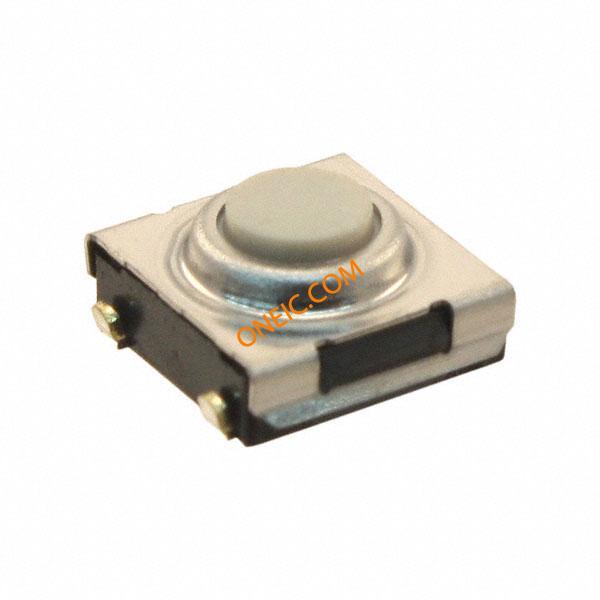

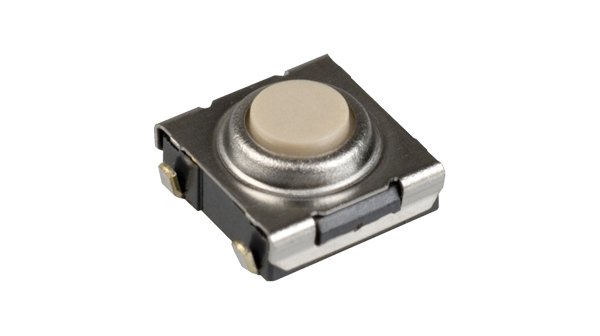

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Round Button |
| 电气寿命 | 50000 |
| 产品长度 | 6.5 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 触点电镀 | Gold |
| 产品厚度 | 7 |
| 安装 | Surface Mount |
| 身体上的取向 | Straight |
| 接地端子 | No |
| 交换机配置 | N.O. |
| 产品高度 | 3.1 |
| 封装 | Bag |
| 最大直流额定电压 | 24 |
| 操作力 | 1.57 |
| 极掷配置 | SPST |
| 终端类型 | J-Bend |
| 最低工作温度 | -25 |
| 最大额定电流 | 0.05@24VDC |
| 机械寿命 | 50000 |
| 执行器颜色 | Ivory |
| 工业别名 | B3SN-3012 |
| 子类别 | Switch Tactile |
| 交货期 | 89 Days |
| 外形 | 6.50mm x 6.00mm |
| 操作力 | 160gf |
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 执行器类型 | Standard |
| 安装类型 | Surface Mount |
| 标准包装 | 100 |
| 开关功能 | Off-Mom |
| 端接类型 | SMD (SMT) Tab |
| 工作温度 | -25°C ~ 70°C |
| 致动器方向 | Top Actuated |
| 开关行程 | 0.25mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 3.10mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 100,000 Cycles |
| 触点额定电压 | 0.05A @ 24VDC |
| 产品特点 | Sealed - Fully |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPST-NO |
| 触点额定电流 | 0.05 A @ 24 V dc |
| 触点材料 | Gold Plated |
| 工厂包装数量 | 100 |
| 额定电流 | 50 mA |
| 工作温度范围 | - 20 C to + 70 C |
| 系列 | B3SN |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 干高度 | 1.1 mm |
| 安装风格 | SMD/SMT |
| 产品种类 | Tactile Switches |
| 单位重量 | 0.007055 oz |
| 零件号别名 | 1181018 364096 |
| RoHS | RoHS Compliant |
| Contact Voltage DC Nom | :24V |
| Contact Current Max | :50mA |
| 驱动类型 | :Top |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.0002 |
| Tariff No. | 85365015 |
| ActuatorType | Plunger |
| 应用 | Idealforaudio,office,andcommunicationsequipment,measuringinstruments,industrialrobots,VCRs,TVs,andvendingmachines |
| ContactForm | SPSTNO |
| Current,Rating | 50mA |
| DielectricStrength | 250VAC |
| IPRating | IP67 |
| MountingType | PCB |
| NumberofPoles | 1 |
| 端子 | SMT |
| 类型 | Tactile |
| Voltage,Rating | 24VDC |
| Button height (measured from PCB) | 3.1mm |
| Button shape | round |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
| Switch type | microswitch |
| Key stroke | 0.25mm |
| Switching torque | 1.57N |
| Mechanical durability | 100000cycles |
| Switching method | OFF-(ON) |
| Operating temperature | -25...70°C |
| Stable positions number | 1-position |
| spg | 1500 |
| Max contact resistance: | 100mΩ |
| Body dimensions | 6 x 6mm |
| Multiplicity | 1 |
| Contacts configuration | SPST-NO |
| Gross weight | 0.26 g |
| Min insulation resistance | 100MΩ |
| Actuator colour | ivory |
| 密封 | IP67 |
| Terminal pitch | 5.4x9.5mm |
| Leads | for PCB |
| Collective package [pcs] | 1500 |
