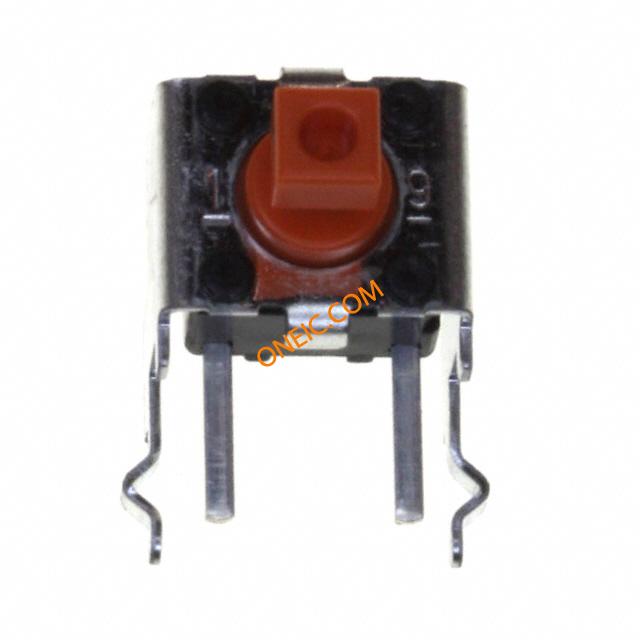

Omron Electronics
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | B3F-3155 |
| 子类别 | Switch Tactile |
| 封装 | Bag |
| 交货期 | 96 Days |
| 外形 | 7.40mm x 7.30mm |
| 操作力 | 260gf |
| 执行器类型 | Plunger for Cap |
| 安装类型 | Through Hole, Right Angle |
| 标准包装 | 100 |
| 开关功能 | Off-Mom |
| 端接类型 | PC Pin |
| 工作温度 | -25°C ~ 70°C |
| 致动器方向 | Side Actuated |
| 开关行程 | 0.25mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 6.15mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 100,000 Cycles |
| 触点额定电压 | 0.05A @ 24VDC |
| 产品特点 | Grounding Pin |
| RoHS指令 | Lead free / RoHS Compliant |
| 执行器颜色 | Orange |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPST-NO |
| 触点额定电流 | 0.05 A @ 24 V dc |
| 触点材料 | Gold Plated |
| 终端类型 | Through Hole |
| 工厂包装数量 | 100 |
| 额定电流 | 50 mA |
| 工作温度范围 | - 25 C to + 70 C |
| 接地端子 | Yes |
| 系列 | B3F |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 干高度 | 6.15 mm |
| 安装风格 | Through Hole |
| 产品种类 | Tactile Switches |
| 单位重量 | 0.029983 oz |
| 执行器 | Rectangular |
| 安装方向 | Right Angle |
| 零件号别名 | 1703877 364011 |
| RoHS | RoHS Compliant |
| Contact Voltage DC Nom | :24V |
| Contact Current Max | :50mA |
| 驱动类型 | :Side |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| 开关操作 | :(On)-Off |
| Weight (kg) | 0.002 |
| Tariff No. | 85365005 |
| Switches features | with ground terminal |

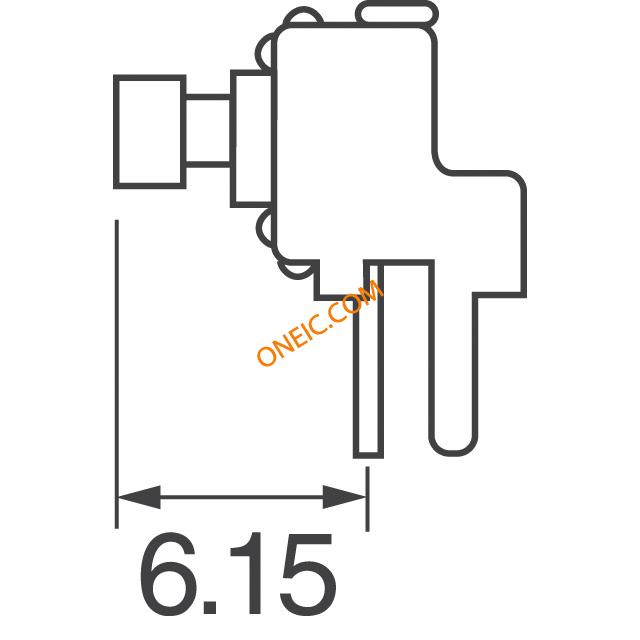

| Button height (measured from PCB) | 6.15mm |
| 安装 | THT |
| Button shape | square |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
| Switch type | microswitch |
| Key stroke | 0.25mm |
| Switching torque | 2.55N |
| Mechanical durability | 100000cycles |
| Operating temperature | -25...70°C |
| Stable positions number | 1-position |
| Switching method | OFF-(ON) |
| Max contact resistance: | 100mΩ |
| Body dimensions | 6 x 6mm |
| Multiplicity | 5 |
| Contacts configuration | SPST-NO |
| Gross weight | 1.32 g |
| Contact material | phosphor bronze |
| 接触镀层 | silver plated |
| Min insulation resistance | 100MΩ |
| Actuator colour | orange |
| Terminal pitch | 2.5x4.5mm |
| Leads | for PCB, angled |
