Omron Electronics

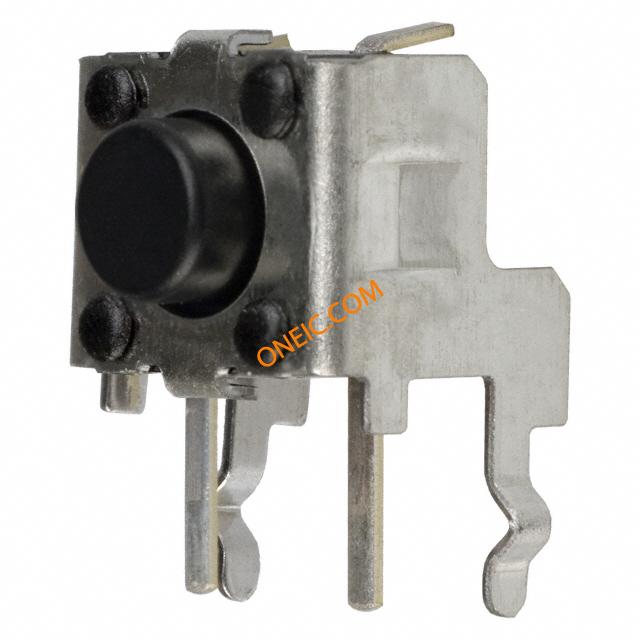

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | B3F-3120 |
| 子类别 | Switch Tactile |
| 封装 | Bag |
| 交货期 | 20 Days |
| 外形 | 7.40mm x 7.30mm |
| 操作力 | 100gf |
| 执行器类型 | Standard |
| 安装类型 | Through Hole, Right Angle |
| 标准包装 | 100 |
| 开关功能 | Off-Mom |
| 端接类型 | PC Pin |
| 工作温度 | -25°C ~ 70°C |
| 致动器方向 | Side Actuated |
| 开关行程 | 0.25mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 3.85mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 1,000,000 Cycles |
| 触点额定电压 | 0.05A @ 24VDC |
| 产品特点 | Grounding Pin |
| RoHS指令 | Lead free / RoHS Compliant |
| 执行器颜色 | Black |
| 促动器长度 | 1.6mm |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPST-NO |
| 触点额定电流 | 0.05 A @ 24 V dc |
| 触点材料 | Gold Plated |
| 终端类型 | Through Hole |
| 工厂包装数量 | 100 |
| 额定电流 | 50 mA |
| 工作温度范围 | - 25 C to + 70 C |
| 接地端子 | No |
| 系列 | B3F |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 干高度 | 3.85 mm |
| 安装风格 | Through Hole |
| 产品种类 | Tactile Switches |
| 执行器 | Round |
| 安装方向 | Right Angle |
| 零件号别名 | 1608275 364003 OMRB3F3120 |
| RoHS | RoHS Compliant |
| 工作温度范围 | -25C to 70C |
| 触点电镀 | Gold |
| 额定电流（最大值） | 0.05 A |
| 身体上的取向 | Right Angle |
| 类型 | Miniature |
| 额定电压（ VDC ） | 24V |
| 执行器风格 | Flat Plunger |
| 极掷配置 | SPST |
| 开关功能配置 | N.O. |
| 执行器颜色 | Black |
| 照明类型 | Not Required |
| 产品长度（mm ） | 7.3 mm |
| 产品厚度（毫米） | 7.15 mm |
| 产品高度（mm ） | 7.4 mm |
| 执行器长度（mm ）为0.8mm | 1.6 mm |
| 删除 | Compliant |
| Contact Voltage DC Nom | :24V |
| Contact Current Max | :50mA |
| 驱动类型 | :Side |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Contact Current DC Max | :50mA |
| Contact Voltage DC Max | :24V |
| 开关操作 | :Off-On |
| Weight (kg) | 0.01 |
| Tariff No. | 85365005 |
| ActuatorType | Flat |
| 应用 | Idealforapplicationssuchasaudio,officeandcommunicationsequipment,measuringinstruments,TVs,VCRs,etc |
| BodyStyle | Miniature |
| ContactForm | SPSTNO |
| Current,Rating | 50mA |
| DielectricStrength | 500VAC |
| MechanicalLife | 1000000ops.(Min.) |
| MountingHoleSize | 1,1.5mm |
| MountingType | PCB |
| NumberofPoles | 1 |
| OperatingForce | 100Grams |
| 端子 | PCBPins |
| Voltage,Rating | 24VDC |
| Switches features | with ground terminal |
| Button height (measured from PCB) | 3.85mm |
| 安装 | THT |
| Button shape | round |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
| Switch type | microswitch |
| Key stroke | 0.25mm |
| Switching torque | 0.98N |
| Mechanical durability | 1000000cycles |
| Operating temperature | -25...70°C |
| Stable positions number | 1-position |
| Switching method | OFF-(ON) |
| Max contact resistance: | 100mΩ |
| Body dimensions | 6 x 6mm |
| Multiplicity | 5 |
| Contacts configuration | SPST-NO |
| Gross weight | 0.45 g |
| Contact material | phosphor bronze |
| 接触镀层 | silver plated |
| Min insulation resistance | 100MΩ |
| Actuator colour | black |
| Terminal pitch | 2.5x4.5mm |
| Leads | for PCB, angled |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
