Omron Electronics

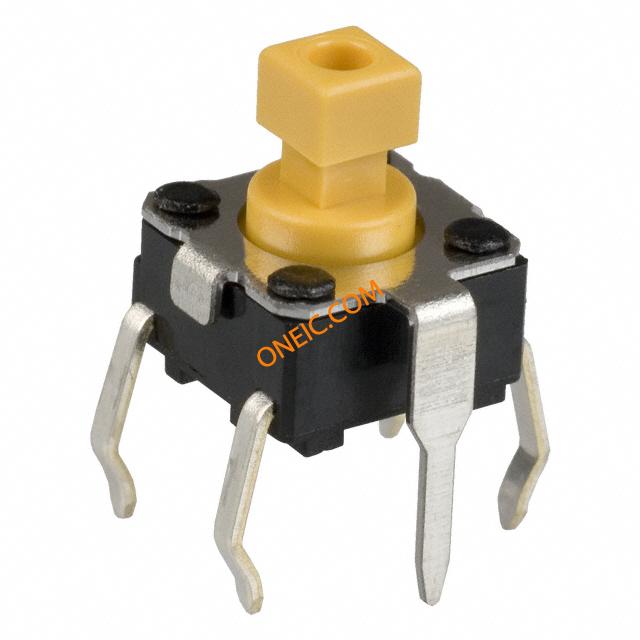

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Projected Plunger |
| 电气寿命 | 300000 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 产品高度 | 7.3 |
| 极掷配置 | SPST |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 接地端子 | Yes |
| 交换机配置 | N.O. |
| 促动器长度 | 3 |
| 封装 | Bag |
| 最大直流额定电压 | 24 |
| Operating Force | 1.47 |
| 触点电镀 | Gold |
| 终端类型 | PC Pins |
| 最低工作温度 | -25 |
| 最大额定电流 | 0.05@24VDC |
| 类型 | Miniature |
| 执行器颜色 | Yellow |
| 工业别名 | B3F-1152 |
| 子类别 | Switch Tactile |
| 交货期 | 89 Days |
| 外形 | 6.00mm x 6.00mm |
| 操作力 | 150gf |
| 执行器类型 | Plunger for Cap |
| 安装类型 | Through Hole |
| 标准包装 | 100 |
| 开关功能 | Off-Mom |
| 端接类型 | PC Pin |
| 工作温度 | -25°C ~ 70°C |
| 致动器方向 | Top Actuated |
| 开关行程 | 0.25mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 7.30mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 300,000 Cycles |
| 触点额定电压 | 0.05A @ 24VDC |
| 产品特点 | Grounding Pin |
| RoHS指令 | Lead free / RoHS Compliant |
| 执行器颜色 | Yellow |
| 促动器长度 | 3mm |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPST-NO |
| 触点额定电流 | 0.05 A @ 24 V dc |
| 触点材料 | Gold Plated |
| 工厂包装数量 | 100 |
| 额定电流 | 50 mA |
| 工作温度范围 | - 25 C to + 70 C |
| 系列 | B3F |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 干高度 | 7.3 mm |
| 安装风格 | Through Hole |
| 产品种类 | Tactile Switches |
| 执行器 | Rectangular |
| 安装方向 | Straight |
| 零件号别名 | 363996 9445218 B3F1152NC |
| RoHS | RoHS Compliant |
| ActuatorType | Projected |
| BodyStyle | Miniature |
| ContactForm | SPSTNO |
| Current,Rating | 50mA |
| DielectricStrength | 500VAC |
| MountingType | PCB |
| NumberofPoles | 1 |
| OperatingForce | 150Grams |
| 端子 | PCBPins |
| Voltage,Rating | 24VDC |
| Switches features | with ground terminal |
| Button height (measured from PCB) | 7.3mm |

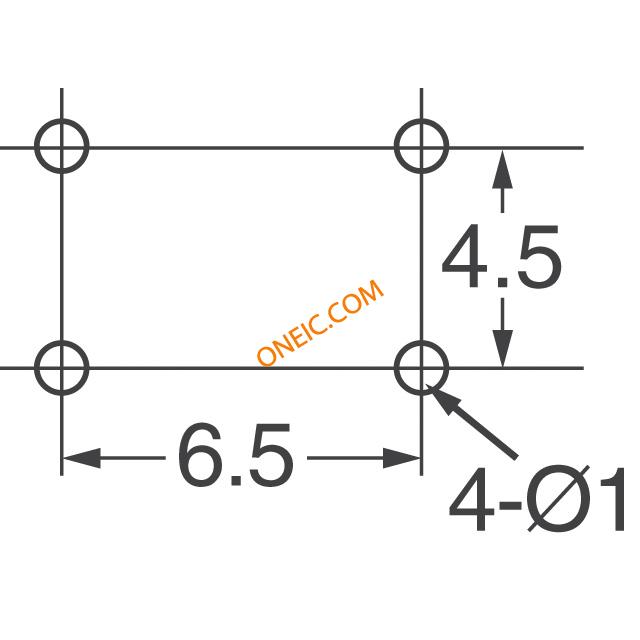

| Terminal pitch | 4.5x6.5mm |
| Button shape | square |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
| Switch type | microswitch |
| Key stroke | 0.25mm |
| Switching torque | 1.47N |
| Mechanical durability | 300000cycles |
| Operating temperature | -25...70°C |
| Stable positions number | 1-position |
| Switching method | OFF-(ON) |
| Body dimensions | 6 x 6mm |
| Multiplicity | 5 |
| Contacts configuration | SPST-NO |
| Associated items | B32-1000, B32-1010, B32-1030, B32-1060, B32-1080 |
| Gross weight | 0.33 g |
| Contact material | phosphor bronze |
| 接触镀层 | silver plated |
| Min insulation resistance | 100MΩ |
| Max contact resistance: | 100mΩ |
| Actuator colour | yellow |
| Leads | for PCB, straight |
| 操作力 | 150 gf |
| 外形尺寸 | 6x6 mm |
| Operating direction | Vertical |
| MainCategory | Switches |
| SubCategory | Tactile Switch |
| 执行器长度 | 3mm |
| 执行器颜色 | 黄色 |
| 操作力 | 1.47 N |
| 触点材料 | 镀金 |
| CAD 绘图 | 3D CAD 模型 |
| 触点配置 | 单刀单掷 - 常开 |
| 执行器类型 | 柱塞 |
| 触点额定电流 | 50 mA @ 24 V 直流 |
| 接端类型 | 通孔 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
