Omron Electronics

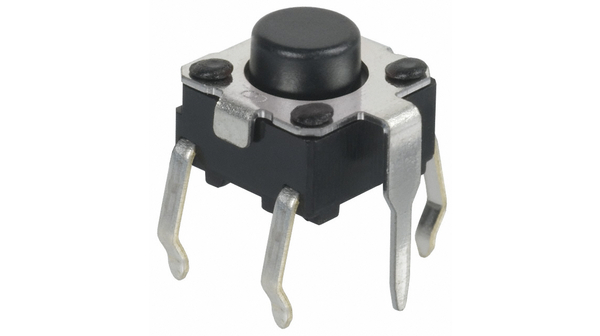

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | B3F-1120 |
| 子类别 | Switch Tactile |
| 封装 | Bag |
| 交货期 | 96 Days |
| 外形 | 6.00mm x 6.00mm |
| 操作力 | 100gf |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 标准包装 | 100 |
| 开关功能 | Off-Mom |
| 端接类型 | PC Pin |
| 工作温度 | -25°C ~ 70°C |
| 致动器方向 | Top Actuated |
| 开关行程 | 0.25mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 5.00mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 1,000,000 Cycles |
| 触点额定电压 | 0.05A @ 24VDC |
| 产品特点 | Grounding Pin |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 100 |
| 额定电流 | 50 mA |
| 工作温度范围 | - 25 C to + 70 C |
| 接地端子 | Yes |
| 系列 | B3F |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 安装风格 | Through Hole |
| 产品种类 | Tactile Switches |
| 触点电镀 | Silver |
| 执行器 | Round |
| 安装方向 | Straight |
| 零件号别名 | 1577228 363991 |
| RoHS | RoHS Compliant |
| Switches features | with ground terminal |
| Button height (measured from PCB) | 5mm |
| 安装 | THT |
| Button shape | round |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
| Switch type | microswitch |
| Key stroke | 0.25mm |
| Switching torque | 0.98N |
| Mechanical durability | 1000000cycles |
| Switching method | OFF-(ON) |
| Operating temperature | -25...70°C |
| Stable positions number | 1-position |
| Contact material | phosphor bronze |
| Max contact resistance: | 100mΩ |
| Body dimensions | 6 x 6mm |
| Multiplicity | 5 |
| Contacts configuration | SPST-NO |
| Gross weight | 1 g |
| 接触镀层 | silver plated |
| Min insulation resistance | 100MΩ |
| Actuator colour | black |
| Terminal pitch | 4.5x6.5mm |
| Leads | for PCB, straight |
| spg | 100 |
| Collective package [pcs] | 100 |
| 操作力 | 100 gf |
| 外形尺寸 | 6x6 mm |
| Operating direction | Vertical |
| MainCategory | Switches |
| 联系配置 | SPST-NO |
| SubCategory | Tactile Switch |
| Dimensions L x W x H | 6 x 6 x 5 mm |
| 额定电流 | 50 mA |
| Button colour | black |
| Actuation force | 0.98 N |
| 测试电压 | 500 |
| Poles | 1 |
| 额定电压 | 24 |
| Temperature range | -25...+70 °C |
| Switching type | Momentary function |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
