Omron Electronics

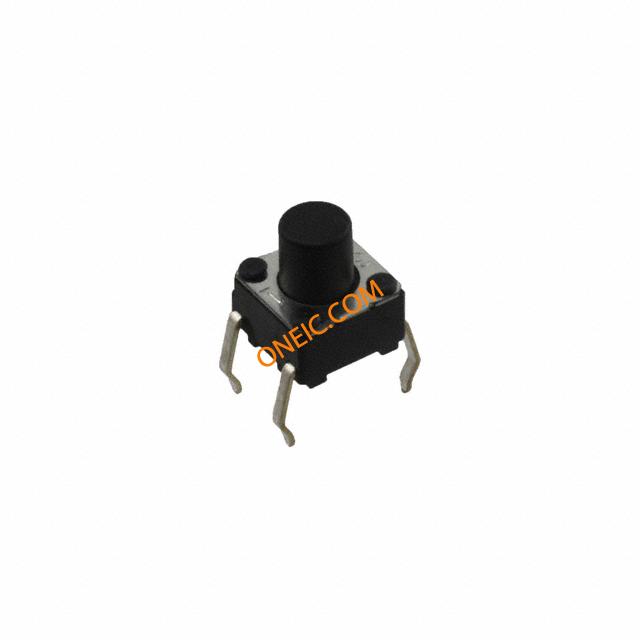

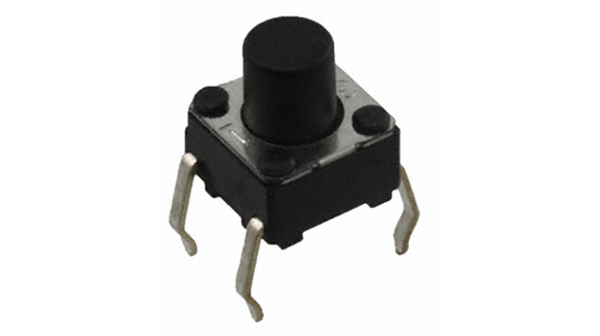

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Flat Plunger |
| 电气寿命 | 1000000 |
| 产品长度 | 6 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 产品高度 | 7 |
| 极掷配置 | SPST |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 接地端子 | No |
| 交换机配置 | N.O. |
| 促动器长度 | 3.6 |
| 封装 | Bag |
| 最大直流额定电压 | 24 |
| Operating Force | 0.98 |
| 触点电镀 | Gold |
| 终端类型 | PC Pins |
| 最低工作温度 | -25 |
| Maximum Current Rating | 0.05@24VDC |
| 执行器颜色 | Black |
| 工业别名 | B3F-1060 |
| 子类别 | Switch Tactile |
| 交货期 | 96 Days |
| 外形 | 6.00mm x 6.00mm |
| 操作力 | 100gf |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 标准包装 | 100 |
| 开关功能 | Off-Mom |
| 端接类型 | PC Pin |
| 工作温度 | -25°C ~ 70°C |
| 致动器方向 | Top Actuated |
| 开关行程 | 0.25mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 7.00mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 1,000,000 Cycles |
| 触点额定电压 | 0.05A @ 24VDC |
| RoHS指令 | Lead free / RoHS Compliant |
| 促动器长度 | 3.6mm |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPST-NO |
| 触点额定电流 | 0.05 A @ 24 V dc |
| 触点材料 | Gold Plated |
| 工厂包装数量 | 100 |
| 额定电流 | 50 mA |
| 系列 | B3F |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 安装风格 | Through Hole |
| 产品种类 | Tactile Switches |
| 执行器 | Round |
| 安装方向 | Vertical |
| 零件号别名 | 363983 |
| RoHS | RoHS Compliant |
| Button height (measured from PCB) | 7mm |
| Button shape | round |
| DC contacts rating (at resistance load) | 0.05 A / 24 VDC |
| Switch type | microswitch |
| Key stroke | 0.25mm |
| Switching torque | 0.98N |
| Mechanical durability | 1000000cycles |
| Operating temperature | -25...70°C |
| Stable positions number | 1-position |
| Switching method | OFF-(ON) |
| Max contact resistance: | 100mΩ |
| Body dimensions | 6 x 6mm |
| Multiplicity | 5 |
| Contacts configuration | SPST-NO |
| Gross weight | 0.3 g |
| Contact material | phosphor bronze |
| 接触镀层 | silver plated |
| Min insulation resistance | 100MΩ |
| Actuator colour | black |
| Terminal pitch | 4.5x6.5mm |
| Leads | for PCB, straight |
| 操作力 | 100 gf |
| 外形尺寸 | 6x6 mm |
| Operating direction | Vertical |
| MainCategory | Switches |
| SubCategory | Tactile Switch |
| Dimensions L x W x H | 6 x 6 x 7 mm |
| 额定电流 | 50 mA |
| Button colour | black |
| Actuation force | 0.98 N |
| 测试电压 | 500 |
| Poles | 1 |
| 额定电压 | 24 |
| Temperature range | -25...+70 °C |
| Switching type | Momentary function |
| 执行器长度 | 3.6mm |
| 操作力 | 0.98 N |
| 触点材料 | 镀金 |
| CAD 绘图 | 3D CAD 模型 |
| 触点配置 | 单刀单掷 - 常开 |
| 执行器类型 | 柱塞 |
| 触点额定电流 | 50 mA @ 24 V 直流 |
| 接端类型 | 通孔 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
