Omron Electronics

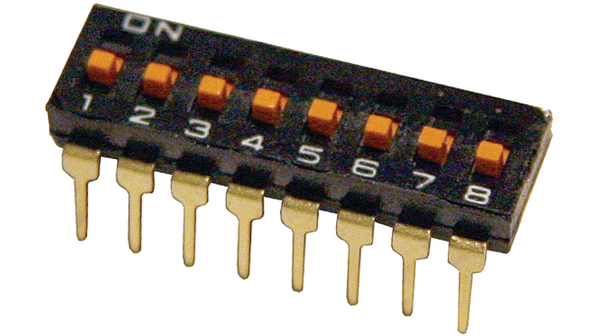

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Raised Slide |
| 电气寿命 | 1000 |
| 产品长度 | 21.26 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 触点电镀 | Gold |
| 产品厚度 | 7.62 |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 交换机配置 | ON OFF |
| 产品高度 | 4.2 |
| 封装 | Stick |
| 最大直流额定电压 | 24 |
| 端子节距 | 2.54 |
| 极掷配置 | SPST |
| 密封 | No |
| 位置数 | 8 |
| 最低工作温度 | -20 |
| 最大额定电流 | 0.025@24VDC |
| 机械寿命 | 1000 |
| 终端类型 | PC Pins |
| 工业别名 | A6T-8104 |
| 子类别 | Switch DIP |
| 交货期 | 104 Days |
| 水洗 | No |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 电路 | SPST |
| 标准包装 | 22 |
| 触点额定电压 | 0.025A @ 24VDC |
| 定位 | Top Actuated |
| 触动器电平 | Raised |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | 8P |
| 触点额定电流 | 0.025 A @ 24 V dc |
| 触点材料 | Gold Plated |
| 最高工作温度 | +70°C |
| 机械寿命 | 1000Operations |
| 最低工作温度 | -20°C |
| 封装形式 | DIP |
| 开关类型 | :DIP |
| No. of Switch Positions | :8 |
| 节距 | :2.54mm |
| Contact Current DC Max | :25mA |
| Switch Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Raised |
| Contact Current @ Contact Voltage DC Max | :25mA |
| Dielectric Strength VDC | :500V |
| External Length / Height | :3.6mm |
| 外宽 | :6.2mm |
| 引线间距 | :2.54mm |
| 长度 | :21.26mm |
| No. of Positions | :8 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| 引脚配置 | :DIL |
| Row Pitch | :7.62mm |
| 系列 | :A6T |
| Weight (kg) | 0.001 |
| Tariff No. | 85365007 |
| Overall length | 21.26mm |
| Poles number | 8 |
| Switches features | raised actuator |
| Min insulation resistance | 100MΩ |
| Electrical life | 1000cycles |
| Terminal pitch | 2.54mm |
| Row pitch | 7.62mm |
| Gross weight | 0.79 g |
| Operating temperature | -20...70°C |
| Multiplicity | 1 |
| DC contacts rating (at resistance load) | 0.025 A / 24 VDC |
| Switching method | ON-OFF |
| Switch type | DIP-SWITCH |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
