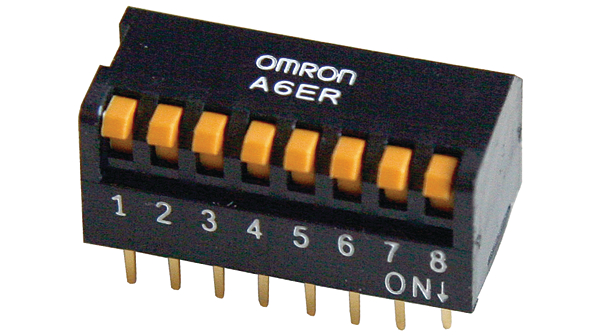

图片仅供参考,产品以实物为准
| 规格书 |
 A6E, A6ER Master Selection Guide Switches |
| 文档 |
How to Read Date Codes |
| Rohs | Lead free / RoHS Compliant |
| 标准包装 | 39 |
| 线路 | SPST |
| 位置数 | 4 |
| Contact Rating @ 电压 | 0.025A @ 24VDC |
| Actuator 型 | Piano |
| 促动器的等级 | Flush |
| 安装类型 | Through Hole |
| 取向 | Side Actuated |
| 耐洗织物 | No |
| 工业别名 | A6ER-4101 |
| 子类别 | Switch DIP |
| 封装 | Tube |
| 交货期 | 96 Days |
| 水洗 | No |
| 执行器类型 | Piano |
| 安装类型 | Through Hole |
| 电路 | SPST |
| 标准包装 | 39 |
| 触点额定电压 | 0.025A @ 24VDC |
| 定位 | Side Actuated |
| 位置数 | 4 |
| 触动器电平 | Flush |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | 4P |
| 触点额定电流 | 0.025 A @ 24 V dc |
| 最高工作温度 | +70°C |
| 机械寿命 | 1000Operations |
| 最低工作温度 | -20°C |
| 封装形式 | DIP |
| 工厂包装数量 | 39 |
| 产品种类 | DIP Switches / SIP Switches |
| 端子节距 | 2.54 mm |
| 联系额定值 | 25 mA |
| 工作温度范围 | - 20 C to + 70 C |
| 系列 | A6E/A6ER |
| 端接类型 | Solder Pin |
| 直流电额定电压 | 24 V |
| 执行器 | Lever |
| 额定电流 | 25 mA |
| 零件号别名 | 363528 8774196 |
| 开关类型 | DIP |
| RoHS | RoHS Compliant |
| No. of Switch Positions | :4 |
| 执行器风格 | :Raised |
| 节距 | :2.54mm |
| Contact Current DC Max | :25mA |
| Switch Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Raised |
| 接触电阻 | :200mohm |
| Dielectric Strength VDC | :500V |
| 绝缘电阻 | :100Mohm |
| 引线间距 | :2.54mm |
| No. of Pins | :12 |
| No. of Poles | :4 |
| No. of Positions | :4 |
| Operating Force Min | :0.29N |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| 引脚配置 | :DIL |
| Row Pitch | :7.62mm |
| 开关容量 | :25 mA |
| 终端类型 | :THT |
| Weight (kg) | 0.00151 |
| Tariff No. | 85365007 |
| Overall length | 11.72mm |
| Poles number | 4 |
| Switches features | "piano" short actuator |
| Min insulation resistance | 100MΩ |
| 安装 | THT |
| Electrical life | 1000cycles |
| Terminal pitch | 2.54mm |
| Row pitch | 7.62mm |
| Gross weight | 2.11 g |
| Operating temperature | -20...70°C |
| 接触镀层 | gold plated |
| Multiplicity | 1 |
| DC contacts rating (at resistance load) | 0.025 A / 24 VDC |
| Switching method | ON-OFF |
| Switch type | DIP-SWITCH |
| associated | 4605X-101-102LF 4605X-101-103LF 4605X-101-472LF |
