Omron Electronics

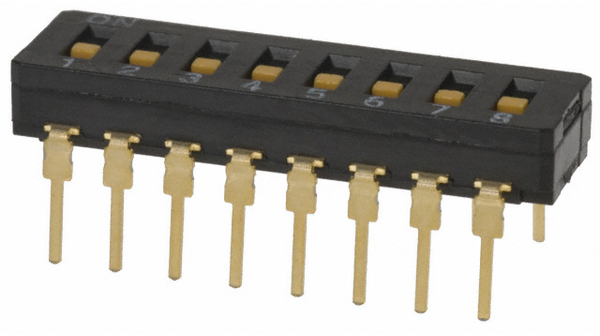

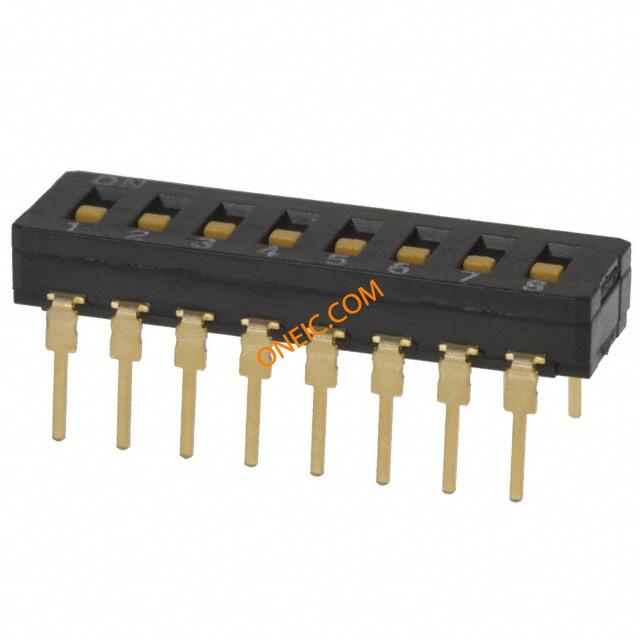

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器风格 | Flush Slide |
| 电气寿命 | 2000 |
| 产品长度 | 22.4 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 触点电镀 | Gold |
| 产品厚度 | 7.62 |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 交换机配置 | ON OFF |
| 产品高度 | 4.4 |
| 封装 | Tube |
| 最大直流额定电压 | 30 |
| 端子节距 | 2.54 |
| 极掷配置 | SPST |
| 位置数 | 8 |
| 最低工作温度 | -20 |
| 最大额定电流 | 0.1@5VDC |
| 机械寿命 | 5000 |
| 终端类型 | PC Pins |
| 工业别名 | A6D-8100 |
| 子类别 | Switch DIP |
| 交货期 | 89 Days |
| 水洗 | Yes |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 电路 | SPST |
| 标准包装 | 23 |
| 触点额定电压 | 0.03A @ 30VDC |
| 定位 | Top Actuated |
| 触动器电平 | Flush |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系配置 | 8P |
| 触点额定电流 | 0.1 A @ 5 V dc |
| 触点材料 | Gold Plated |
| 最高工作温度 | +70°C |
| 机械寿命 | 5000Operations |
| 最低工作温度 | -20°C |
| 封装形式 | DIP |
| 工厂包装数量 | 23 |
| 产品种类 | DIP Switches / SIP Switches |
| 端子节距 | 2.54 mm |
| 联系额定值 | 100 mA |
| 工作温度范围 | - 20 C to + 70 C |
| 封装/外壳 | DIP-8 |
| 端接类型 | Solder Pin |
| 单位重量 | 0.059966 oz |
| 系列 | A6D/A6DR |
| 执行器 | Switch |
| 额定电流 | 100 mA |
| 零件号别名 | 363517 9901701 |
| 开关类型 | DIP |
| RoHS | RoHS Compliant |
| BodyStyle | Subminiature |
| Current,Rating | 30mA |
| DielectricStrength | 500VAC |
| MountingType | PCB |
| NumberofPoles | 8 |
| 操作 | Top-Actuated |
| 端子 | PCBPins |
| 类型 | DIP |
| Voltage,Rating | 30VDC |
| Overall length | 22.4mm |
| Poles number | 8 |
| DC contacts rating (at resistance load) | 0.03 A / 30 VDC |
| Min insulation resistance | 100MΩ |
| Mechanical durability | 5000cycles |
| Electrical life | 2000cycles |
| Terminal pitch | 2.54mm |
| Operating temperature | -20...70°C |
| Row pitch | 7.62mm |
| Gross weight | 1.68 g |
| Switching method | ON-OFF |
| Body material | PBT |
| Multiplicity | 1 |
| Switches features | flat actuator |
| Switch type | DIP-SWITCH |
| Contact material | beryllium copper |
| SubCategory | DIP Switch |
| MainCategory | Switches |
| 系列 | A6D |
| 位置数 | 8 |
| 致动器水平 | Flush |
| 电路 | SPST |
| 不同电压时的触头额定电流 | 0.03A @ 30VDC |
| 致动器类型 | Standard |
| Dimensions L x W x H | 22.4 x 6.6 x 3.4 mm |
| 接触电阻 | <100 mOhm |
| Poles | 8 |
| 测试电压 | 500 |
| Actuation | above, flat |
| L | 22.4 |
| 连接方式 | THD |
| 设计 | Through-Hole |
| 间距 | 2.54 |
| Temperature range | -20...+70 °C |
| Insulation resistance | >100 MOhm |
| Switching capacity | 30 mA@ 30 VDC |
