Omron

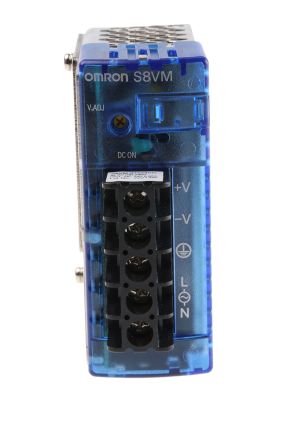

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 89.9mm |
| 外形尺寸 | 113.5 x 38.6 x 89.9mm |
| 效率 | 80% |
| 输入电压 | 85 → 264V ac |
| 长度 | 113.5mm |
| 线路调整 | ±0.4% |
| 负载调整率 | ±0.8% |
| 平均无故障时间 | 135000h |
| 输出电流 | 0.65A |
| 输出电压 | 24V |
| 额定功率 | 15W |
| 纹波和噪声 | ±1% |
| 类型 | Switch Mode |
| 重量 | 180g |
| 宽度 | 38.6mm |
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :85V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :24V |
| Output Current Max | :650mA |
| Output Power Max | :15W |
| Approvals / Standards | :EN 50178 |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, EN, UL |
| 外部深度 | :84.5mm |
| External Length / Height | :84.5mm |
| 外宽 | :35.1mm |
| Frequency Max | :60Hz |
| Frequency Min | :50Hz |
| 身高 | :84.5mm |
| Hold Up Time | :20ms |
| 安装类型 | :DIN Rail |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-10°C |
| Output Ripple and Noise Voltage pk-pk | :1.00% |
| 电源类型 | :Switch Mode |
| 电源电压 | :264V |
| Supply Voltage Max | :240V |
| Supply Voltage Min | :100V |
| Supply Voltage Typ | :110V AC, 230V AC |
| Weight (kg) | 0.18 |
| Tariff No. | 85044030 |
