Omron

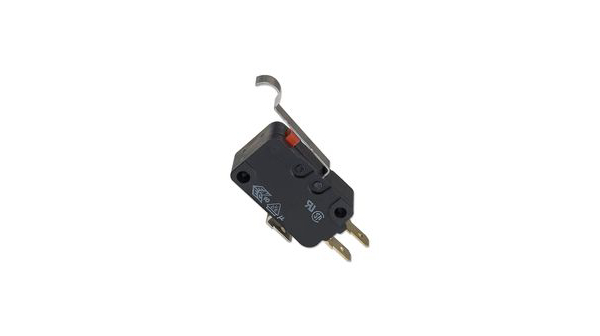

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器类型 | Simulated Roller Lever |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 16 A @ 250 V ac, 16 A @ 8 V dc |
| 触点材料 | Silver Alloy |
| IP等级 | IP40 |
| 最高工作温度 | +105°C |
| 机械寿命 | 10000000Operations |
| 最低工作温度 | -25°C |
| 终端类型 | Tab |
| AC contacts rating (at resistance load) | 16 A / 250 VAC |
| Leads | 6.3x0.8mm connectors |
| Contacts configuration | SPDT |
| DC contacts rating (at resistance load) | 10 A / 30 VDC |
| Switching torque | 1.96N |
| Mechanical durability | 10000000cycles |
| Multiplicity | 1 |
| Switches features | with lever with roller simulation |
| Electrical life | 100000cycles |
| Gross weight | 9.17 g |
| Stable positions number | 1-position |
| Operating temperature | -25...105°C |
| 接触镀层 | silver plated |
| Min insulation resistance | 100MΩ |
| Body dimensions | 27.8 x 10.3 x 15.9mm |
| 密封 | IP40 |
| Switch type | microswitch |
| Lever length | 24.1mm |
| Max contact resistance: | 30mΩ |
| Switching method | ON-(ON) |
| SubCategory | Snap-Action Switch |
| MainCategory | Switches |
| 联系方式 | 1 change-over (CO) |
| 额定电流 | 16 A |
| Actuation | Simulated roller lever |
| Actuation force | 1.96 N |
| Termination type | Faston 6.3 mm |
| 额定电压 | 250 |
| Temperature range | -25...+105 °C |
| Protection rating | IP 40 |
| Contact material | Ag alloyed |
| 最低工作温度 | -25°C |
| IP 防护等级 | IP40 |
| 最高工作温度 | +105°C |
| 触点配置 | 单刀双掷 - 常开/常闭 |
| 工作温度范围 | -25 → +105°C |
| CAD 绘图 | 3D CAD 模型 |
| 触点材料 | 银合金 |
| 机械寿命 | 10000000Operations |
| 执行器类型 | 模拟滚轮杠杆 |
| 触点额定电流 | 16 A @ 250 V 交流 |
| 接端类型 | 翼片 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
