Omron

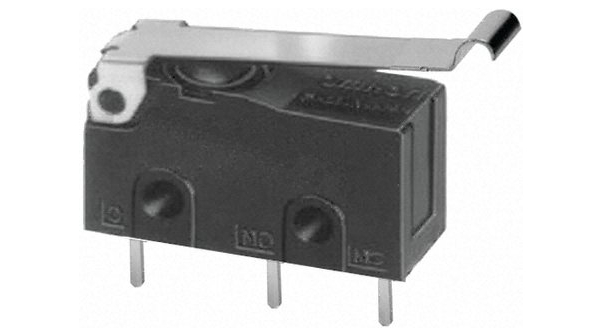

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器类型 | Simulated Roller Lever |
| CAD绘图 | 3D CAD Model |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 0.1 A @ 125 V ac, 0.1 A @ 30 V dc |
| 触点材料 | Gold Alloy |
| IP等级 | IP67 |
| 最高工作温度 | +85°C |
| 机械寿命 | 5000000Operations |
| 最低工作温度 | -40°C |
| 操作力 | 0.59 N |
| 释放力 | 0.06N |
| 终端类型 | PCB |
| Microswitch Type | :Subminiature |
| 执行器风格 | :Simulated Roller Lever |
| 开关操作 | :(Not Applicable) |
| Operating Force Max | :0.59N |
| Contact Current Max | :100mA |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.004 |
| Tariff No. | 85365007 |
| AC contacts rating (at resistance load) | 0.1 A / 125 VAC |
| Leads | for PCB, self-clinching |
| Contacts configuration | SPDT |
| DC contacts rating (at resistance load) | 0.1 A / 30 VDC |
| Switching torque | 0.59N |
| Mechanical durability | 5000000cycles |
| Multiplicity | 1 |
| Switches features | with lever with roller simulation |
| Electrical life | 200000cycles |
| Gross weight | 2.72 g |
| Operating temperature | -40...85°C |
| 接触镀层 | gold plated |
| Stable positions number | 1-position |
| Body dimensions | 19.8 x 6.4 x 10.1mm |
| Terminal pitch | 8.8mm |
| 密封 | IP67 |
| Switch type | microswitch |
| Lever length | 15.8mm |
| Max contact resistance: | 50mΩ |
| Switching method | ON-(ON) |
