Omron

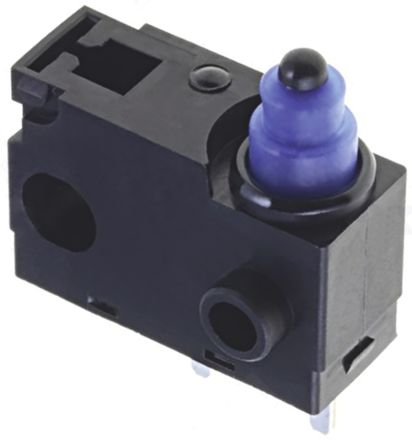

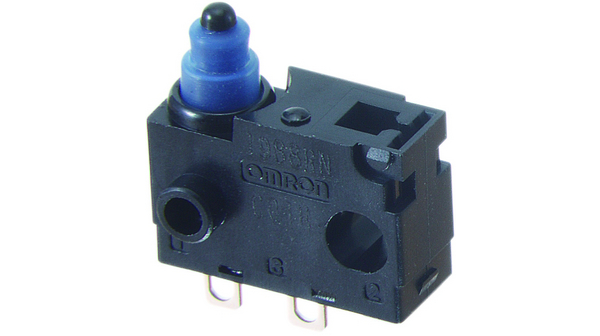

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器类型 | Pin Plunger |
| 外壳材料 | Rubber |
| 联系配置 | SPST-NO |
| 触点额定电流 | 0.1 A @ 30 V dc |
| IP等级 | IP67 |
| 最高工作温度 | +85°C |
| 机械寿命 | 500000Operations |
| 最低工作温度 | -40°C |
| 操作力 | 1.5 N |
| 终端类型 | Pc Pin |
| 系列 | D2QW |
| 产品种类 | Basic / Snap Action Switches |
| RoHS | RoHS Compliant |
| Microswitch Type | :Subminiature |
| 执行器风格 | :Pin Plunger |
| 开关操作 | :On-Off |
| Operating Force Max | :1.5N |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :1mA |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.0007 |
| Tariff No. | 85365080 |
| Leads | for PCB, straight |
| Contacts configuration | SPST-NO |
| DC contacts rating (at resistance load) | 0.1 A / 30 VDC |
| Switching torque | 1.5N |
| Mechanical durability | 500000cycles |
| Multiplicity | 1 |
| Electrical life | 200000cycles |
| Gross weight | 1.34 g |
| Operating temperature | -40...85°C |
| 接触镀层 | gold plated |
| Stable positions number | 1-position |
| Body dimensions | 13.3 x 5.3 x 9.3mm |
| Terminal pitch | 5.08mm |
| 密封 | IP67 |
| Switching method | OFF-(ON) |
| Max contact resistance: | 100mΩ |
| Switch type | microswitch |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
