Omron

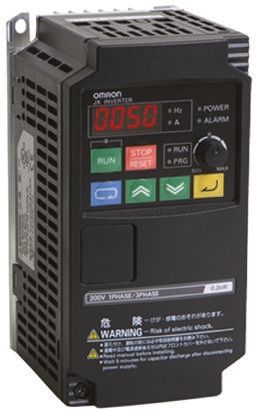

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Ambient Temperature | -10 → +50°C |
| 控制面板 | Yes |
| 额定电流 | 1.5 A |
| 现场总线通讯方式 | ModBus |
| 过滤器包括 | Yes |
| 适用于 | JX Series |
| IP等级 | IP20 |
| 输出频率 | 0.5 → 400Hz |
| 整体深度 | 130.5mm |
| 总长 | 189mm |
| 总宽 | 110mm |
| 第一阶段 | 3 |
| 额定功率 | 0.4 kW |
| 电源电压 | 380 → 480 V |
| 外形尺寸 | see |
| 安装 | for wall mounting |
| Number of analog inputs | 1 |
| Three-phase power supply voltages range | 3 x 380...480V AC |
| 额定电流 | 1.5A |
| Module type | Inverter |
| Operating temperature | -10...50°C |
| 保护功能 | overload, overheating, voltage drop, voltage growth, short-circuit |
| Additional functions | 1 programmable analogue output, 1 digital programmable input, 5 programmable digital outputs |
| Output frequency | 0.5...400Hz |
| The programming method | keypad and potentiometer |
| Multiplicity | 1 |
| Electrical connection | screw terminals |
| Gross weight | 1.7 kg |
| Output 1 properties | relay 3A/250VAC or tension output 24VDC - selectable by switch |
| Starting/stopping time | 0.01...3000/0.01...3000s |
| Input 1 properties | rotational speed setting with signal 0...10V, 4...20mA, 0...20mA |
| 密封 | IP20 |
| Schematic diagram | see |
| Max motor power | 0.4kW |
| Number of inputs | 6 |
| Number of analog outputs | 1 |
| Voltage output | 0...10V |
| 包含滤波器 | 是 |
| IP 防护等级 | IP20 |
| 相位 | 3 |
| 电源电压 | 380 → 480 V |
| 总体长度 | 189mm |
| 输出频率 | 0.5 → 400Hz |
| 现场总线通信类型 | ModBus |
| 额定电流 | 1.5 A |
| 总体深度 | 130.5mm |
| 系列 | JX |
| 控制面板 | 是 |
| 额定功率 | 0.4 kW |
| 环境温度 | -10 → +50°C |
| 总体宽度 | 110mm |
