NXP

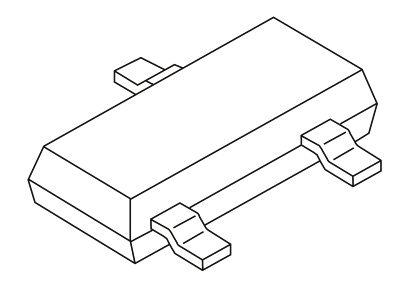

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装 | Surface Mount |
| 工作温度范围 | 0C to 70C |
| 包装类型 | TO-236AB |
| 封装 | Tape and Reel |
| 引脚数 | 3 |
| 参考电压精度（最大值） | 1 |
| 工作温度分类 | Commercial |
| 输入电压 | 37 V |
| 输出电压（最大值） | 2.495 to 36 V |
| 线路调整 | -2.7mV/V |
| 固定/调整/课程 | Adjust |
| 弧度硬化 | No |
| 拓扑结构 | :Shunt |
| Input Voltage Min | :2.483V |
| Input Voltage Max | :36V |
| 参考电压 | :2.495V |
| Voltage Reference Case Style | :SOT-23 |
| No. of Pins | :3 |
| 温度系数 | :- |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| No. of Outputs | :1 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :0°C |
| 工作温度范围 | :0°C to +70°C |
| 输出电流 | :100mA |
| Output Voltage Adjustable Range | :2.5V to 36V |
| Output Voltage Max | :36V |
| Output Voltage Min | :2.5V |
| Voltage Regulator Case Style | :SOT-23 |
| Weight (kg) | 0.000002 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
