NXP Semiconductors

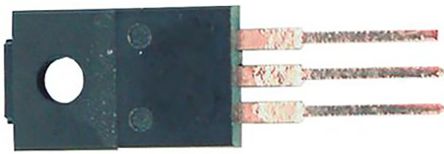

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形尺寸 | 10.3 x 4.6 x 9.3mm |
| 身高 | 9.3mm |
| 长度 | 10.3mm |
| 最大门极触发电流 | 70mA |
| 最大门极触发电压 | 1.5V |
| 最大保持电流 | 20mA |
| 最高工作温度 | +125 °C |
| 最低工作温度 | -40 °C |
| 安装类型 | Through Hole |
| 包装类型 | TO-220F |
| 峰值通态电压 | 1.65V |
| 引脚数 | 3 |
| 重复峰值正向阻断电压 | 600V |
| 重复峰值断态电流 | 0.5mA |
| 重复峰值反向电压 | 600V |
| 浪涌额定电流 | 71A |
| 宽度 | 4.6mm |
| Peak Repetitive Off-State Voltage, Vdrm | :600V |
| Gate Trigger Current Max (QI), Igt | :10mA |
| On State RMS Current IT(rms) | :8A |
| Peak Non Rep Surge Current Itsm 50Hz | :71A |
| Gate Trigger Voltage Max Vgt | :1.5V |
| Peak Gate Power | :5W |
| Thyristor Case | :TO-220F |
| No. of Pins | :3 |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Holding Current Max Ih | :10mA |
| Weight (kg) | 0.00195 |
| Tariff No. | 85413000 |
| 案例 | TO220ISO |
| Gate current | 70mA |
| 安装 | THT |
| Gross weight | 2.4 g |
| Load current max | 8A |
| Type of semiconductor component | triac |
| Multiplicity | 1 |
| 压摆率 | 250V/μs |
| Off state voltage max | 600V |
| Collective package [pcs] | 20 |
| spg | 20 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
