nxp semiconductors

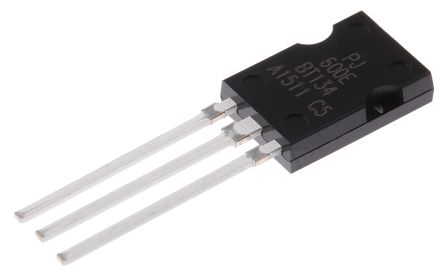

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 3SIP |
| 类型 | TRIAC |
| 重复峰值反向电压 | 600 V |
| 最大保持电流 | 15 mA |
| 浪涌额定电流 | 27 A |
| 峰值通态电压 | 1.7@5A V |
| 重复峰值断态电流 | 0.5 mA |
| 最大门极触发电压 | 1.5 V |
| 最大门极触发电流 | 25 mA |
| 工作温度 | -40 to 125 °C |
| 安装 | Through Hole |
| 标准包装 | Rail / Tube |
| 重复峰值反向电压 | 600 |
| 浪涌额定电流 | 27 |
| 最大门极触发电压 | 1.5 |
| Package Width | 2.8(Max) |
| PCB | 3 |
| 峰值通态电压 | 1.7@5A |
| 欧盟RoHS指令 | Compliant |
| 最大保持电流 | 15 |
| Repetitive Peak Forward Blocking Voltage | 600 |
| 最低工作温度 | -40 |
| 供应商封装形式 | SIP |
| 标准包装名称 | SIP |
| 最高工作温度 | 125 |
| Package Length | 7.8(Max) |
| Operating Junction Temperature | 125 |
| 引脚数 | 3 |
| 最大门极触发电流 | 25 |
| Package Height | 11.1(Max) |
| 重复峰值断态电流 | 0.5 |
| 封装 | Tube |
| 铅形状 | Through Hole |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 7.8 x 2.8 x 11.1mm |
| 身高 | 11.1mm |
| 长度 | 7.8mm |
| 安装类型 | Through Hole |
| 包装类型 | SIP |
| 重复峰值正向阻断电压 | 600V |
| 宽度 | 2.8mm |
| 工厂包装数量 | 50 |
| 产品种类 | Triacs |
| 额定重复关闭状态电压VDRM | 600 V |
| 门极触发电流 | 11 mA |
| 关闭状态漏泄电流@ VDRM IDRM | 0.1 mA |
| 保持电流（ Ih最大值） | 15 mA |
| 开启状态RMS电流 - 这RMS | 4 A |
| 安装风格 | Through Hole |
| 不重复通态电流 | 25 A |
| 最低工作温度 | - 40 C |
| 封装/外壳 | SOT-82-3 |
| 通态电压 | 1.4 V |
| 零件号别名 | BT134-600E |
| 最高工作温度 | + 125 C |
| RoHS | RoHS Compliant |
| Peak Repetitive Off-State Voltage, Vdrm | :600V |
| Gate Trigger Current Max (QI), Igt | :25mA |
| On State RMS Current IT(rms) | :4A |
| Peak Non Rep Surge Current Itsm 50Hz | :25A |
| Holding Current Max Ih | :2.2mA |
| Gate Trigger Voltage Max Vgt | :700mV |
| Peak Gate Power | :5W |
| Operating Temperature Max | :125°C |
| Thyristor Case | :SOT-82 |
| No. of Pins | :3 |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.002 |
| Tariff No. | 85413000 |
| 案例 | SOT82 |
| Gate current | 11mA |
| Gross weight | 1.5 g |
| Load current max | 4A |
| Type of semiconductor component | triac |
| Multiplicity | 1 |
| 压摆率 | 50V/μs |
| Off state voltage max | 600V |
| Collective package [pcs] | 500 |
| spg | 500 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
