nxp semiconductors

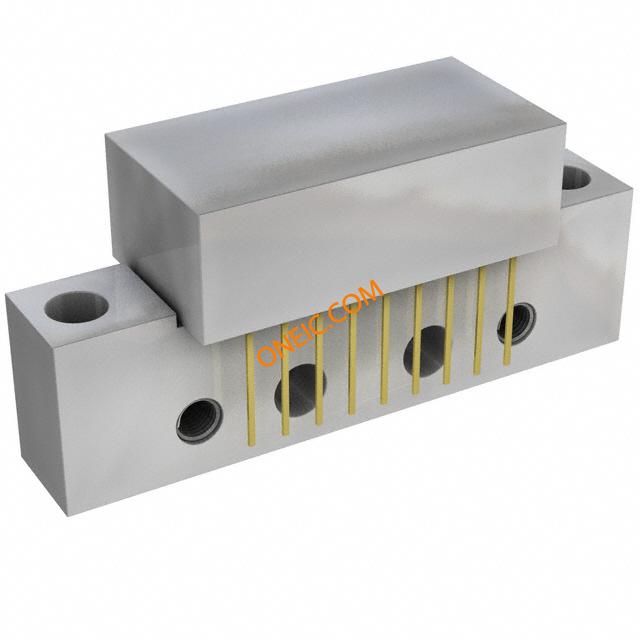

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 9SOT-115D |
| 类型 | Gain Amplifier |
| 典型功率增益 | 17.3(Min)@750MHz dB |
| 最大输出回波损耗 | 15(Min)@860MHz dB |
| 最大输入回波损耗 | 10(Min)@860MHz dB |
| 最大电源电流 | 240@24V@30C mA |
| 标准包装 | Rail / Tube |
| RoHS | RoHS Compliant By Exemption |
| 封装 | Tube |
| 工厂包装数量 | 25 |
| Minimum Power Gain @ Maximum Frequency | 17.3 |
| 安装 | Through Hole |
| Package Width | 13.75 |
| PCB | 9 |
| Minimum Operating Frequency | 40 |
| 功能 | Push Pull |
| 欧盟RoHS指令 | Compliant |
| 最大电源电流 | 240 |
| Minimum Input Return Loss @ Maximum Frequency | 10 |
| Maximum Gain Flatness @ Maximum Frequency | ±0.3 |
| 每个芯片的元件数 | 1 |
| Maximum Operating Frequency | 860 |
| 供应商封装形式 | SOT-115D |
| 标准包装名称 | SOT-115D |
| Maximum Noise Figure @ Maximum Frequency | 8 |
| Maximum Slope Cable Equivalent | 1.4 |
| Package Length | 44.75 |
| 引脚数 | 9 |
| Maximum Power Gain @ Maximum Frequency | 17.5@50MHz |
| Package Height | 9.1 |
| 典型工作电源电压 | 24 |
| 最大工作电源电压 | 26 |
| Minimum Output Return Loss @ Maximum Frequency | 15 |
| Minimum Slope Cable Equivalent | 0.2 |
| 噪声系数 | 8dB |
| 供应商设备封装 | SFM9 |
| RF型 | General Purpose |
| 测试频率 | 750MHz |
| 电流 - 电源 | 240mA |
| 电压 - 电源 | 26V |
| 增益 | 17.3dB |
| 频率 | 40MHz ~ 860MHz |
| 封装/外壳 | SOT-115D |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
