NXP

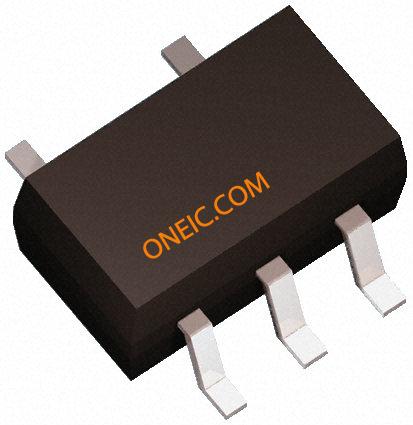

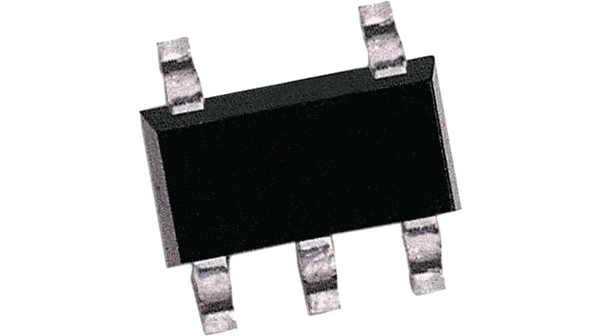

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形尺寸 | 2.25 x 1.35 x 1mm |
| 身高 | 1mm |
| 输入类型 | CMOS |
| 长度 | 2.25mm |
| 逻辑系列 | 74HC |
| 逻辑功能 | NAND |
| 最大高电平输出电流 | -2.6mA |
| 最大低电平输出电流 | 2.6mA |
| 最大工作电源电压 | 6 V |
| 最高工作温度 | +125 °C |
| 最大传播延迟时间@最大CL | 135ns |
| 最低工作电源电压 | 2 V |
| 最低工作温度 | -40 °C |
| 安装类型 | Surface Mount |
| 元件数 | 1 |
| 输出类型 | Current |
| 包装类型 | TSSOP |
| 引脚数 | 5 |
| 传输延时测试条件 | 50pF |
| 宽度 | 1.35mm |
| 逻辑类型 | :NAND |
| 输出电流 | :2.6mA |
| No. of Inputs | :2 |
| Supply Voltage Min | :2V |
| Supply Voltage Max | :6V |
| Logic Case Style | :SOT-353 |
| No. of Pins | :5 |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :74 |
| IC Generic Number | :74HC1G00 |
| Logic Function Number | :741G00G |
| Logic IC Base Number | :74100 |
| Logic IC Family | :HC |
| Logic IC Function | :2 Input NAND Gate |
| No. of Gates | :1 |
| 工作温度范围 | :-40°C to +125°C |
| 电源电压 | :5V |
| Supply Voltage Range | :2V to 6V |
| 端接类型 | :SMD |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423990 |
| 案例 | SOT353 |
| Number of inputs | 2 |
| Gate type | NAND |
| 安装 | SMD |
| 系列 | AHC |
| Integrated circuit type | digital |
| Gross weight | 0.04 g |
| Multiplicity | 5 |
| Collective package [pcs] | 3000 |
| spg | 3000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
