NXP

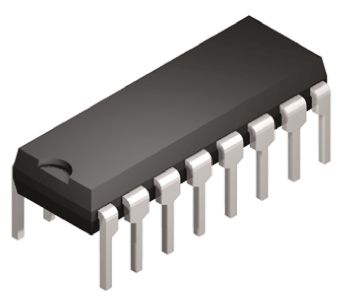

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形尺寸 | 19.5 x 6.48 x 4.2mm |
| 方向类型 | Uni-Directional |
| 身高 | 4.2mm |
| 长度 | 19.5mm |
| 逻辑系列 | 74HCT |
| 逻辑功能 | Shift Register |
| 最大工作电源电压 | 5.5 V |
| 最高工作温度 | +125 °C |
| 最低工作电源电压 | 4.5 V |
| 最低工作温度 | -40 °C |
| 安装类型 | Through Hole |
| 阶段数 | 8 |
| 操作模式 | Parallel to Serial |
| 包装类型 | DIP |
| 引脚数 | 16 |
| 预设类型 | Asynchronous |
| 触发类型 | Positive Edge |
| 宽度 | 6.48mm |
| Shift Register Function | :Parallel to Serial |
| 逻辑类型 | :Shift Register |
| No. of Elements | :1 |
| IC Output Type | :Standard |
| Logic Case Style | :DIP |
| No. of Pins | :16 |
| Supply Voltage Min | :4.5V |
| Supply Voltage Max | :5.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :74 |
| 频率 | :48MHz |
| IC Generic Number | :74HCT165 |
| Input Current Max | :1µA |
| Logic Function Number | :74165 |
| Logic IC Base Number | :74165 |
| Logic IC Family | :HCT |
| Logic IC Function | :8bit Parallel-In/Serial-Out Shift Register |
| No. of Inputs | :8 |
| 工作温度范围 | :-40°C to +125°C |
| Power Dissipation Ptot Max | :750mW |
| 电源电压 | :5V |
| Supply Voltage Range | :4.5V to 5.5V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.0012 |
| Tariff No. | 85423990 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
