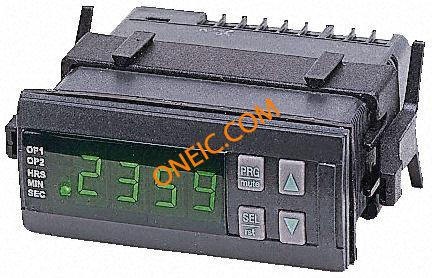

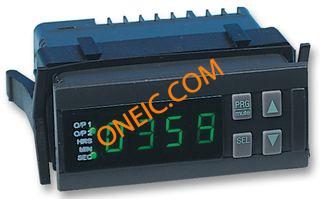

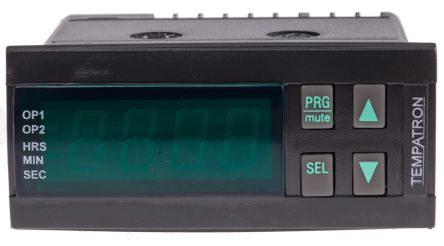

Tempatron
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 联系配置 | SP-NO, SP-NO/NC |
| 深度 | 71.5mm |
| 长度 | 33mm |
| 最高工作温度 | +50°C |
| 最大电压 | 240 V ac, 30 V dc |
| 最低工作温度 | 0°C |
| 操作模式 | 24 Hour Clock, Cycle, Dependent ON Delay Energise, Interval, ON Delay Deenergise, ON Delay Energise, ON Delay Energise & Interval, Pulse Delay |
| 安装类型 | Panel |
| 触点数 | 2 |
| 定时器功能数 | Multi Function |
| 电源 | External |
| 电源电压 | 12 → 24 V ac/dc |
| 交换机配置 | DPDT |
| 延时 | 100 (Reset) ms |
| 时间增量 | Hours, Minutes, Seconds |
| Time Range | 0 → 99:59 h, 0.1 → 999.9 s, 1 → 99:59 min |
| 宽度 | 75mm |
| 产品范围 | :TEMPATRON - TT32 Series |
| Timer Functions | :Multifunction |
| Time Min | :0.1s |
| Time Max | :99.98h |
| No. of Timing Ranges | :6 |
| No. of Digits | :4 |
| Timer Output | :1 Changeover Relay |
| Supply Voltage Max | :24V |
| Current Rating Nom | :8A |
| Connection / Termination | :Plug-In |
| Panel Cutout Height | :29mm |
| Panel Cutout Width | :71mm |
| SVHC | :No SVHC (20-Jun-2013) |
| 调节型 | :Pushbutton |
| Coil Voltage VAC Nom | :240V |
| Coil Voltage VDC Nom | :24V |
| Contact Current AC Max | :8A |
| 联系额定值 | :8A |
| Contact Voltage AC Max | :240V |
| Delay Time Range | :0s to 99.59h |
| 外部深度 | :69mm |
| External Length / Height | :33mm |
| 外宽 | :75mm |
| 身高 | :33mm |
| No. of Poles | :1 |
| Nom Input Voltage | :24V |
| Operating Temperature Max | :50°C |
| Operating Temperature Min | :0°C |
| Operating Time Range | :1sec - 100hour |
| Panel Cut-out Size | :71x29mm |
| Power Consumption Max | :3VA |
| Relay Mounting | :Panel |
| Reset Time | :100ms |
| 系列 | :TT32 |
| Supply Voltage AC Max | :24V |
| Supply Voltage AC Min | :12V |
| Switch Current Max | :8A |
| Weight (kg) | 0.14 |
| Tariff No. | 85364900 |
