Lattice

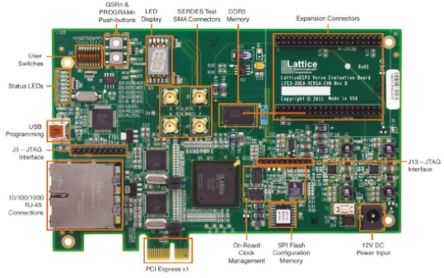

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 产品 | Evaluation Boards |
| 类型 | FPGA |
| 工具用于评估 | LFE3-35EA-8FN484C |
| 接口类型 | Ethernet, UART, USB |
| 工作电源电压 | 12 V |
| 外形尺寸 | 6.6 in x 4.75 in |
| 工厂包装数量 | 1 |
| 欧盟RoHS指令 | Compliant |
| 配用/相关产品 | LFE3-35EA |
| 内容 | Board, Cable, Power Supply |
| 标准包装 | 1 |
| RoHS指令 | Lead free / RoHS Compliant |
| 分类 | Development Kit |
| 套装包括 | Display, Evaluation Board for LatticeECP3 Versa, LatticeECP3 FPGA: LFE3-35EA-8FN484C, Power Supply, Push Buttons, Quick Start Guide, Switches & Indicators, USB Cable |
| 技术 | FPGA |
| 系列 | ECP3-35EA Dev Tool |
| Silicon Manufacturer | :Lattice Semiconductor |
| 核心架构 | :CPLD |
| Core Sub-Architecture | :CPLD |
| Silicon Core Number | :LFE3-35EA-8FN484C |
| Silicon Family Name | :LatticeECP3 |
| No. of Bits | :- |
| 套件包含 | :LatticeECP3 Versa Evaluation Board, USB A to USB B Cable, 12V AC Power Adapter, QuickSTART Guide |
| 产品特点 | :On-board Boot Flash, 14-segment Alpha-numeric Display, On-board Reference Clock Sources |
| Weight (kg) | 0.3 |
| Tariff No. | 84715000 |
| Standard Pack Qty | 1 |
