SMC

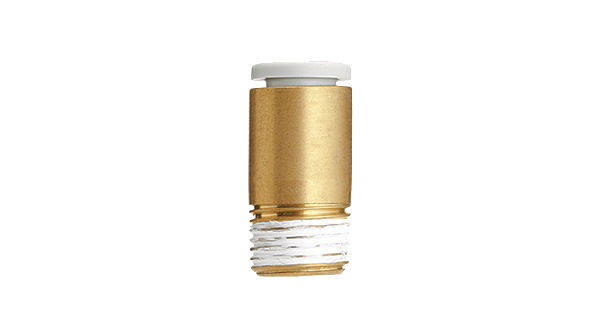

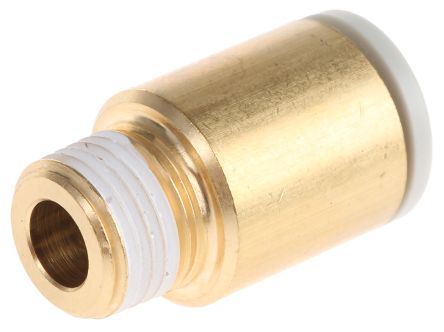

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Manufacturer Series | KQ2 |
| Material | Brass, PBT, PP, Stainless Steel |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -5°C |
| Threaded Connection | R 1/8 Male |
| Threaded Connection - Gender | Male |
| Threaded Connection - Thread Size | 1/8in |
| Threaded Connection - Thread Standard | R |
| Tube Connection | Push In 8 mm |
| Tube Connection - Tube Size | 8mm |
| Tube Connection - Type | Push In |
| Thread | R1/8" |
| Operating temperature, air | -5...+60 °C |
| Operating pressure | -100 kPa...1 MPa |
| Hose external ø (A) | 8.0 |
| Operating temperature, water | 0...+40 °C |
| Type | Straight plug-in connector |
| 最高操作温度 | +60°C |
| 螺纹材料 | 黄铜 |
| 制造商系列 | KQ2 |
| 连接器 - 性别 | 公 |
| 管连接 A | 推入式 8 mm |
| 管连接 - 管尺寸 | 8mm |
| 连接器 A - 螺纹尺寸 | 1/8in |
| 螺纹连接 - 性别 | 外螺纹 |
| 管连接 | 推入式 8 mm |
| 管连接- 类型 | 推入式 |
| 螺纹连接 | R 1/8 外螺纹 |
| 最低操作温度 | -5°C |
| 主体材料 | 黄铜 |
| 连接器 A | R 1/8 公 |
| 连接器 - 螺纹标准 | R |
| 管连接 A- 类型 | 推入式 |
| 连接类型 | 螺纹对管 |
| 螺纹连接 - 螺纹标准 | R |
| 螺纹连接 - 螺纹尺寸 | 1/8in |
