Roth Elektronik

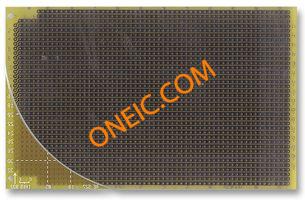

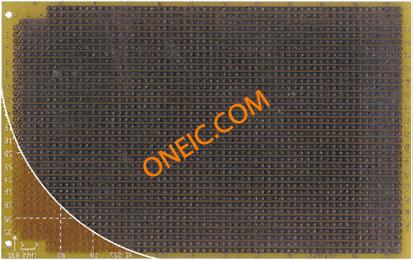

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 底座材质 | Epoxy Glass Fabric Laminate |
| 连接方式 | DIN 41612 C, DIN 41612 D |
| 铜厚 | 35µm |

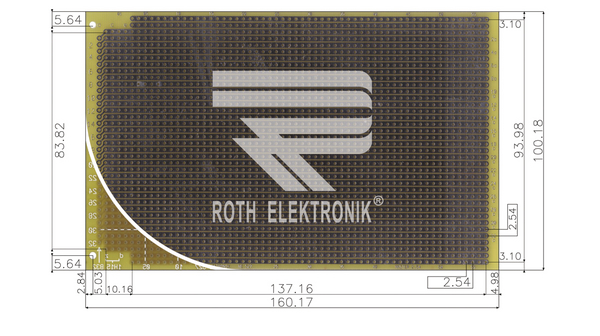

| 外形尺寸 | 160 x 100 x 1.5mm |
| 阻燃材料等级 | FR4 |
| 孔直径 | 1mm |
| 孔布局 | 38 x 57 |
| 孔间距 | 2.54 x 2.54mm |
| 长度 | 160mm |
| 面数 | 1 |
| 厚度 | 1.5mm |
| 宽度 | 100mm |
| 板类型 | :Prototype Board |
| Board Material | :FR4 Epoxy Fibreglass |
| 外部高度 | :100mm |
| 外宽 | :160mm |
| 板厚度 | :1.5mm |
| Board Connector / Footprint | :DIN41612 Type C & D |
| SVHC | :No SVHC (20-Jun-2013) |
| Copper Coating Density | :HAL 5 - 6 µm (hole 2 - 3 µm) |
| External Length / Height | :100mm |
| Hole Matrix | :39 x 57 |
| 材质 | :Epoxy FR4 |
| No. of Copper Coated Sides | :1 |
| No. of Holes | :2223 |
| No. of Strips | :36 |
| PCB Size | :100 x 160 mm |
| 节距 | :2.54mm |
| Row Pitch | :2.54mm |
| Weight (kg) | 0.041 |
| Tariff No. | 85340019 |
| Copper plating thickness | 35µm |
| Board type | universal |
| Laminate thickness | 1.5mm |
| Multiplicity | 1 |
| Soldering pads pitch | 2.54mm |
| Gross weight | 1 g |
| Holes for connectors | typ C 32 pin, typ D 32 pin |
| Board varaiant | single sided, prototyping |
| Collective package [pcs] | 25 |
| Hole diameter | 1mm |
| spg | 25 |
