Roth Elektronik

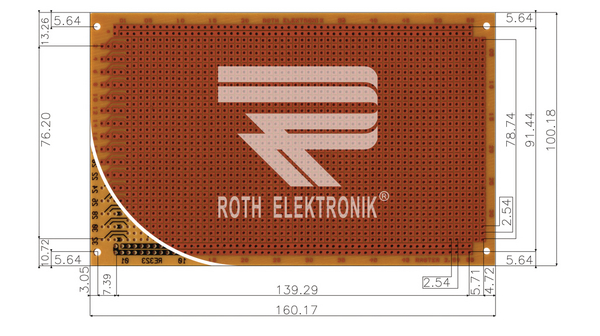

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 底座材质 | Synthetic Resin Bonded Paper |
| 连接方式 | DIN 41612 D, DIN 41612 E, DIN 41612 F |
| 铜厚 | 35µm |
| 外形尺寸 | 160 x 100 x 1.5mm |
| 阻燃材料等级 | FR2 |
| 孔直径 | 1mm |
| 孔布局 | 32 x 55 |
| 孔间距 | 2.54 x 2.54mm |
| 长度 | 160mm |
| 面数 | 1 |
| 厚度 | 1.5mm |
| 宽度 | 100mm |
| 板类型 | :Prototype Board |
| Board Material | :FR2 Synthetic Resin Bonded Paper |
| 外部高度 | :100mm |
| 外宽 | :160mm |
| 板厚度 | :1.5mm |
| Board Connector / Footprint | :DIN41612 Type D / E / F |
| SVHC | :No SVHC (20-Jun-2013) |
| Copper Coating Density | :Organic Surface Protection 0,30 µm |
| External Length / Height | :100mm |
| Hole Matrix | :32 x 55 |
| 材质 | :SRBP FR2 |
| No. of Copper Coated Sides | :1 |
| No. of Holes | :1760 |
| PCB Size | :100 x 160 mm |
| Pad Area | :2.20 mm² |
| 节距 | :2.54mm |
| Weight (kg) | 0.032 |
| Tariff No. | 85340019 |
| Copper plating thickness | 35µm |
| Board type | universal |
| Laminate thickness | 1.5mm |
| Multiplicity | 1 |
| Soldering pads pitch | 2.54mm |
| Gross weight | 0.03 kg |
| Holes for connectors | typ D 32 pin, typ E 48 pin, typ F 48 pin |
| Board varaiant | single sided, prototyping |
| Collective package [pcs] | 25 |
| Hole diameter | 1mm |
| spg | 25 |
