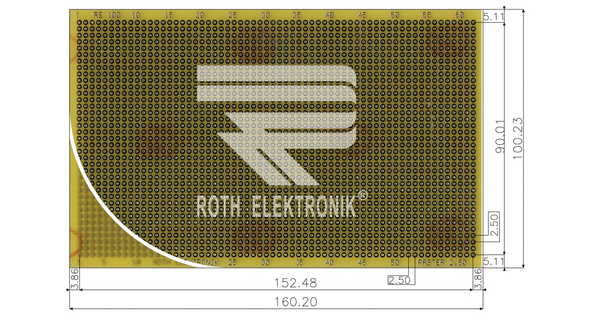

Roth Elektronik
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 底座材质 | Epoxy Glass Fabric Laminate |
| 连接方式 | DIN 41612 C |
| 铜厚 | 35µm |
| 外形尺寸 | 160 x 100 x 1.5mm |
| 阻燃材料等级 | FR4 |
| 孔直径 | 1mm |
| 孔布局 | 37 x 56 |
| 孔间距 | 2.5 x 2.5mm |
| 长度 | 160mm |
| 面数 | 1 |
| 厚度 | 1.5mm |
| 宽度 | 100mm |
| Board Material | :FR4 Epoxy Fibreglass |
| 外部高度 | :100mm |
| 外宽 | :160mm |
| 板厚度 | :1.5mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Copper Coating Density | :35 um, 1-side |
| 节距 | :2.5mm |
| Weight (kg) | 0.042 |
| Tariff No. | 85340019 |
| RoHS指令 | RoHS Compliant Part |
| Copper plating thickness | 35µm |
| Board type | universal |
| Laminate thickness | 1.5mm |
| Multiplicity | 1 |
| 材质 | FR2 |
| Soldering pads pitch | 2.5mm |
| Gross weight | 0.04 kg |
| Holes for connectors | type C 32/64/96 pin |
| Board varaiant | single sided, prototyping |
| Collective package [pcs] | 25 |
| Hole diameter | 1mm |
| spg | 25 |
