Kingbright

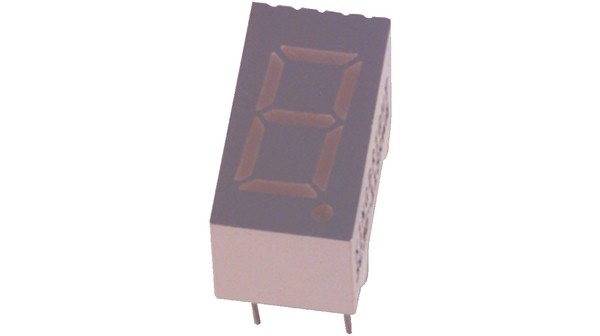

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Displays & Accessories |
| RoHS | RoHS Compliant |
| 显示器类型 | 7 Segment |
| 数字位数 | 1 |
| 字符大小为5mm ×7毫米 | 4.82 mm x 9.14 mm |
| 照明颜色 | Red |
| 波长 | 625 nm |
| 共用引脚 | Common Anode |
| 工作电源电压 | 2 V |
| 工作电流 | 20 mA |
| 最高工作温度 | + 85 C |
| 最低工作温度 | - 40 C |
| 发光强度 | 1900 ucd |
| 功耗 | 75 mW |
| 工厂包装数量 | 36 |
| 可视范围 - 宽x高 | 4.82 mm x 9.14 mm |
| 子类别 | LED Displays Segmented |
| 封装 | Tube |
| 交货期 | 56 Days |
| 电压 - 正向（Vf ）典型值 | 2V |
| 数字/ Alpha尺寸 | 0.36" (9.14mm) |
| 颜色 | Red |
| 尺寸/尺寸 | 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) |
| Millicandela等级 | 2.1mcd |
| 字符数 | 1 |
| 波长 - 峰值 | 627nm |
| 标准包装 | 36 |
| 电流 - 测试 | 20mA |
| 功率耗散（最大） | 75mW |
| 封装/外壳 | 10-DIP (0.200", 5.08mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 封装/外壳 | 10-DIP (0.200", 5.08mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Display type | single 7-segment |
| Terminal pitch | 2.54mm |
| 外形尺寸 | 14 x 7.5mm |
| 安装 | THT |
| 颜色 | red |
| Digit height | 9.14mm |
| Common electrode | anode |
| Row pitch | 5.08mm |
| Gross weight | 1.72 g |
| 亮度 | 0.8-1.9mcd |
| spg | 360 |
| Collective package [pcs] | 360 |
| Multiplicity | 1 |
| Luminous Intensity (Min) | 480 ucd @10mA |
| SubCategory | Numeric |
| 材质 | GaAsP/GaP |
| MainCategory | Displays |
| 镜片颜色 | White Diffused |
| Luminous Intensity (Typ) | 1900 ucd @10mA |
| Wavelength Color | 625nm |
| 尺寸 | .36" |
| 极性 | C.A. |
| Light intensity typ | 1.9 mcd@ 10 mA |
| Peak wave length | 625 |
| Decimal point | right |
| Light colour | red |
| Character height | 9.14 |
| No of positions | 1 |
| Operating temperature | -40...+85 °C |
| 设计 | THT |
| Rated on-state current (per LED) | 10 |
| 技术 | GaAsP/GaP |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
