Kingbright

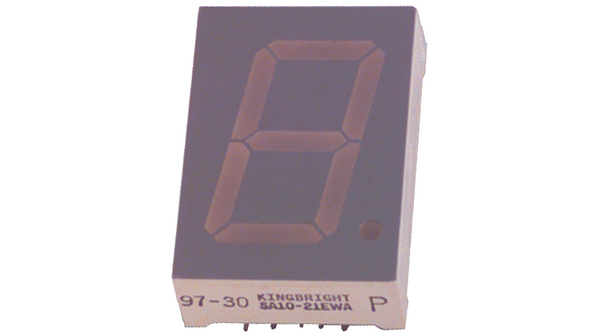

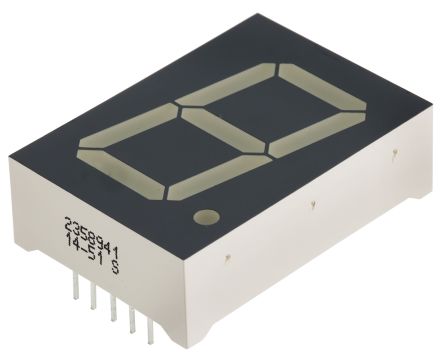

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Displays & Accessories |
| RoHS | RoHS Compliant |
| 显示器类型 | 7 Segment |
| 数字位数 | 1 |
| 字符大小为5mm ×7毫米 | 1 in |
| 照明颜色 | Red |
| 波长 | 640 nm |
| 共用引脚 | Common Anode |
| 工作电源电压 | 1.85 V |
| 工作电流 | 30 mA |
| 最高工作温度 | + 85 C |
| 最低工作温度 | - 40 C |
| 封装 | Tube |
| 发光强度 | 60000 ucd |
| 工厂包装数量 | 15 |
| 子类别 | LED Displays Segmented |
| 交货期 | 56 Days |
| 电压 - 正向（Vf ）典型值 | 3.7V |
| 数字/ Alpha尺寸 | 1.00" (25.40mm) |
| 颜色 | Red |
| 尺寸/尺寸 | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) |
| Millicandela等级 | 120mcd |
| 字符数 | 1 |
| 波长 - 峰值 | 660nm |
| 标准包装 | 20 |
| 电流 - 测试 | 20mA |
| 功率耗散（最大） | 150mW |
| 封装/外壳 | 10-DIP (1.200", 30.48mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 字符尺寸 | 26 x 13mm |
| 字符高度 | 26mm |
| 字符宽度 | 13mm |
| 颜色的脸 | Grey |
| 常见的连接方式 | Anode |
| 十进制方向 | Left Side |
| 外部深度 | 8.5mm |
| 外部尺寸 | 32.9 x 22.5 x 8.5mm |
| 外部高度 | 32.9mm |
| 外宽 | 22.5mm |
| 指示灯颜色 | Red |
| 安装类型 | PCB Through Hole |
| 段数 | 7 |
| No. of Digits / Alpha | :1 |
| 指示灯颜色 | :Red |
| Forward Current If | :20mA |
| 正向电压 | :3.7V |
| SVHC | :No SVHC (20-Jun-2013) |
| 背景颜色 | :Grey |
| Character Type | :8. |
| Current If Luminous Intensity | :10mA |
| External Length / Height | :34mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :1.85V |
| 引线间距 | :2.54mm |
| Luminous Intensity per Segment @ If Max | :31mcd |
| Luminous Intensity per Segment @ If Min | :14mcd |
| Luminous Intensity per Segment @ If Typ | :14mcd |
| No. of Characters | :1 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +85°C |
| PIV Max | :5V |
| Peak Forward Current | :20mA |
| Row Pitch | :30.4mm |
| Voltage Vf Typ | :1.85V |
| Weight (kg) | 0.025 |
| Tariff No. | 85414010 |
| 封装/外壳 | 10-DIP (1.200", 30.48mm) |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Display type | single 7-segment |
| Terminal pitch | 2.54mm |
| 外形尺寸 | 34 x 24mm |
| 安装 | THT |
| 颜色 | red |
| Digit height | 25.4mm |
| Common electrode | anode |
| Row pitch | 30.4mm |
| Gross weight | 0.01 kg |
| 亮度 | 18-60mcd |
| spg | 20 |
| Collective package [pcs] | 20 |
| Multiplicity | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
