KINGBRIGHT

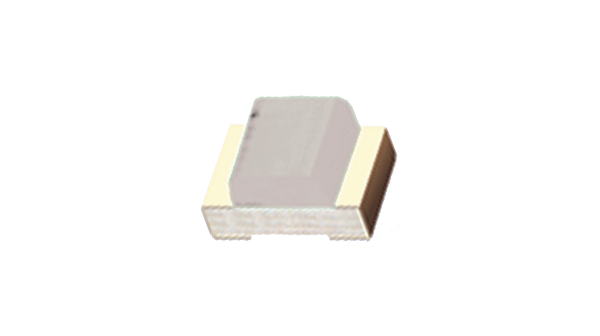

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Bulb Size | :1.25mm x 1.3mm |
| 指示灯颜色 | :Red |
| 发光强度 | :15mcd |
| 可视角度 | :120° |
| Forward Current If | :20mA |
| 正向电压 | :2V |
| LED Mounting | :SMD |
| 透镜形状 | :Rectangular |
| Wavelength Typ | :625nm |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| 主波长 | :625nm |
| 外部深度 | :1.25mm |
| External Length / Height | :1.1mm |
| 外宽 | :2.0mm |
| Forward Current If Max | :20mA |
| Forward Voltage VF Max | :2.5V |
| 身高 | :1.1mm |
| LED / Lamp Size | :1.3mm x 1.25mm |
| LED Type | :Standard |
| Luminous Intensity @ If Min | :4mcd |
| Luminous Intensity Typ | :12.5mcd |
| 材质 | :GaAsP/GaP |
| 安装类型 | :SMD |
| No. of Pins | :2 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +85°C |
| Opto Case Style | :0805 |
| PIV Max | :5V |
| 峰值波长 | :625nm |
| Reverse Leakage Current Max | :10µA |
| Storage Temperature Max | :85°C |
| Storage Temperature Min | :-40°C |
| Voltage Vf Typ | :2.0V |
| Weight (kg) | 0.0001 |
| Tariff No. | 85414010 |
| 案例 | 0805 |
| Multiplicity | 2000 |
| 外形尺寸 | 2 x 1.25mm |
| 安装 | SMD |
| 可视角度 | 120° |
| LED colour | red |
| Gross weight | 0.06 g |
| Diode type | LED |
| LED lens | transparent |
| 亮度 | 4-12mcd |
| 波长 | 625nm |
| Collective package [pcs] | 2000 |
| spg | 2000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
