LEM USA Inc

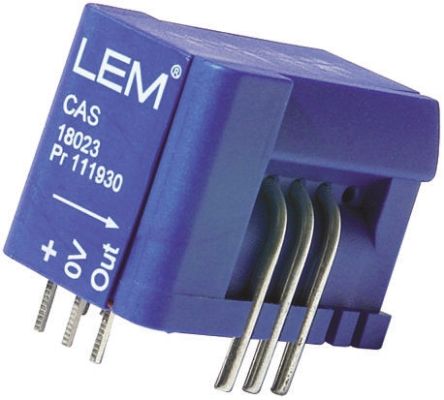

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 准确性 | ±0.8% |
| 封装 | Tube |
| 传感器类型 | Flux Gate |
| 安装类型 | Through Hole |
| 输出 | 0 V ~ 5 VDC |
| 灵敏度 | 12.5mV/A |
| 极化方式 | Bidirectional |
| 工作温度 | -40°C ~ 85°C |
| 电压 - 电源 | 4.75 V ~ 5.25 V |
| 标准包装 | 50 |
| 电流 - 感应 | 50A |
| 响应时间 | 300ns |
| 频率 | 300kHz |
| 封装/外壳 | Module |
| Current Measuring Range AC | :-150A to 150A |
| Current Measuring Range DC | :-150A to 150A |
| Supply Voltage DC Min | :4.75V |
| Supply Voltage DC Max | :5.25V |
| Sensor Output1 | :Voltage |
| Accuracy % | :0.8% |
| SVHC | :No SVHC (20-Jun-2013) |
| Supply Voltage Range DC | :4.75V to 5.25V |
| Weight (kg) | 0.009 |
| Tariff No. | 85043121 |
| 通道数 | 1 |
| 线性 | ±1% |
| 电流 - 电源（最大）电流 | 20mA |
| 封装/外壳 | Module |
| 测量 | AC/DC |
| RoHS指令 | Lead free / RoHS Compliant |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
