Littelfuse

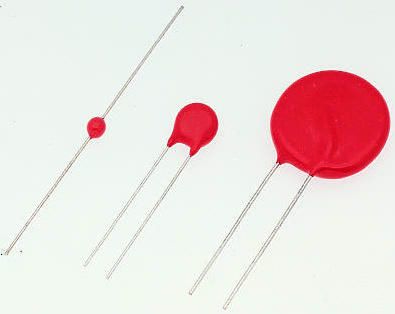

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Varistors |
| RoHS | RoHS Compliant |
| 产品 | MOV |
| 直流电额定电压 | 45 V |
| 电压额定值AC | 35 V |
| 钳位电压 | 110 V |
| 直径 | 7 mm |
| 峰值浪涌电流 | 700 A |
| 浪涌能量额定值 | 2.3 J |
| 电容 | 700 pF |
| 工作温度范围 | - 55 C to + 85 C |
| 安装 | Radial |
| 封装 | Bulk |
| 表壳直径 | 7 mm |
| 额定电流 | 2.5 A |
| 外形尺寸 | 7 mm Dia. x 5 mm H |
| 系列 | ZA |
| 工厂包装数量 | 1500 |
| 端接类型 | Radial |
| 变阻器电压 | 50 V to 62 V |
| 单位包 | 0 |
| 最小起订量 | 1 |
| 最大交流电压 | 35VAC |
| 最大直流电压 | 45VDC |
| 能量 | 2.3J |
| 标准包装 | 1,500 |
| 电流 - 浪涌 | 250A |
| 封装/外壳 | Disc 7mm |
| 电路数 | 1 |
| RoHS指令 | Lead free / RoHS Compliant |
| 钳位电流 | 2.5A |
| 引线间距 | 6mm |
| 最大交流电压额定值 | 35V |
| 最大直流额定电压 | 45V |
| 最大浪涌电流 | 250A |
| 厚度 | 5mm |
| 技术 | Metal Oxide |
| 工作温度范围 | -55C to 85C |
| 引线间距 | 6 mm |
| 电容值 | 1035 pF |
| 引线类型 | Radial |
| AC额定电压（最大值） | 35 VAC |
| 直流额定电压（最大值） | 45 VDC |
| 浪涌电流（最大） | 250 A |
| 产品厚度（毫米） | 5 mm |
| 产品高度（mm ） | 12 mm |
| 产品直径（mm ） | 9 mm |
| 尺寸代码 | Not Required |
| Varistor Type | :Metal Oxide Varistor (MOV) |
| Peak Surge Current @ 8/20µs | :250A |
| Varistor Case | :Disc 10mm |
| Clamping Voltage Vc Max | :110V |
| Peak Energy (10/1000uS) | :2.3J |
| Voltage Rating V DC | :45V |
| Voltage Rating V AC | :35V |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :85°C |
| SVHC | :No SVHC (20-Jun-2013) |
| 主体直径 | :7mm |
| Clamping Voltage @ 8/20µs Max | :110V |
| Device Marking | :56Z2 |
| 外宽 | :5.6mm |
| 引线直径 | :0.68mm |
| 引线长度 | :25.4mm |
| Peak Pulse Current IPP @ 8/20µs | :250A |
| 抑制器类型 | :Varistor |
| Surge Current | :250A |
| Temperature Coeff. + | :0.05ppm/°C |
| Test Voltage | :2500V |
| Transient Energy | :2.3J |
| Varistor Voltage @ 1mA | :50V |
| Varistor Voltage @ 1mA Max | :62V |
| Weight (kg) | 0.07 |
| Tariff No. | 85363010 |
| Brand/Series | ZASeries |
| Current,Peak | 250A |
| ElectricStrength | 2.3Joules |
| EnergyRating | 2.3Joules |
| 包装 | Leads |
| Temperature,Operating,Maximum | 85°C |
| Temperature,Operating,Minimum | -55°C |
| TerminalType | RadialLeaded |
| 类型 | MOV |
| Voltage,AC | 35VAC |
| Voltage,Clamping | 110V |
| Voltage,DC | 45VDC |
| Voltage,Operating | 45VDC |
| Voltage,Varistor | 62V |
| Varistor voltage | 56V |
| Multiplicity | 1 |
| Terminal pitch | 5mm |
| Varistor type | metal-oxide |
| Gross weight | 0.77 g |
| Energy 2 ms | 2.3J |
| Max body dimensions | Ø7mm |
| Varistor max current 8/20µs | 250A |
| Max operating voltage | 35V AC, 45V DC |
| Collective package [pcs] | 1500 |
| spg | 1500 |
