Littelfuse

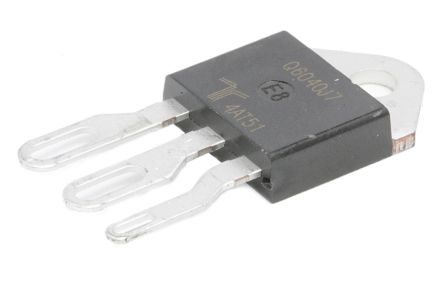

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 250 |
| 最小起订量 | 250 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 250 |
| 产品种类 | Triacs |
| 额定重复关闭状态电压VDRM | 600 V |
| 门极触发电流 | 100 mA |
| 关闭状态漏泄电流@ VDRM IDRM | 200 uA |
| 保持电流（ Ih最大值） | 120 mA |
| 系列 | Qxx40xx |
| 开启状态RMS电流 - 这RMS | 40 A |
| 安装风格 | Through Hole |
| 不重复通态电流 | 335 A, 400 A |
| 封装 | Tube |
| 最低工作温度 | - 40 C |
| 封装/外壳 | TO-218X-3 |
| 通态电压 | 1.8 V |
| 最高工作温度 | + 125 C |
| RoHS | RoHS Compliant |
| Peak Repetitive Off-State Voltage, Vdrm | :600V |
| On State RMS Current IT(rms) | :40A |
| Peak Non Rep Surge Current Itsm 50Hz | :335A |
| Gate Trigger Voltage Max Vgt | :2V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| Thyristor Case | :TO-218X |
| No. of Pins | :3 |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Holding Current Max Ih | :100mA |
| 工作温度范围 | :-40°C to +125°C |
| Weight (kg) | 0.004 |
| Tariff No. | 85413000 |
| ChannelType | Bi-directional |
| Current,GateTrigger | 100mA |
| PackageType | TO-218 |
| Resistance,Thermal,JunctiontoCase | 0.97°C/W |
| Voltage,Reverse,Peak,Maximum | 600V |
